IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

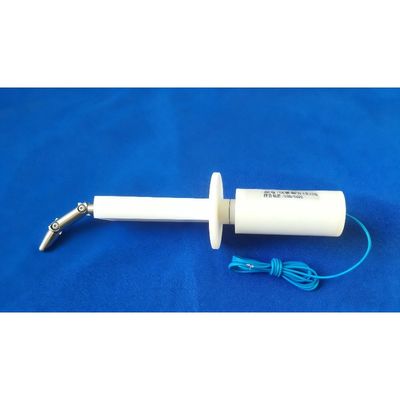

Large Image : IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

Description

Voltage:	220 V	Protection Class:	Ip56
Baffle Diameter:	50mm	Baffle Length:	100mm
Finger Diameter:	12mm	Finger Length:	80mm
Handle Material:	Nylon	Finger Material:	Steel
Thread Size:	M6	Compliance Standards:	GB/T16482-2008, IEC61032, GB4208, IEC60529
Test Type:	Contact Protection	Sample Range:	Live Components Or Mechanical Parts
Function:	Shock-proof Testing	Connection Type:	Terminals
Compatibility:	Push-pull Force Gauge
Highlight:	IEC 60529 test probe , contact protection testing machine , IEC 60065 inspection probe

IEC 60529 IEC 60065 Inspection Probe Fingers Contact Protection Testing Machine Test Probe

Product Description

This inspection probe is designed for testing the prevention of human contact with dangerous components and for protection tests to prevent the back of the hand from touching.

Compliance with Standards

GB/T16482-2008 Figure 1, IEC61032 Figure 1, GB4208 IP1, IEC60529 IP1.

Product Overview

Tests accessible live components or mechanical parts of enclosures for safety compliance.

Structure and Function

Constructed with nylon handle and steel ball
Connect terminals to conduct shock-proof tests
M6 threaded holes at handle end for compatibility with push-pull force gauges

Technical Specifications

Specification	Measurement
Diameter of the curved finger	12mm
Length of the curved finger	80mm (total length of three sections)
Diameter of the baffle	50mm
Length of the baffle	100mm

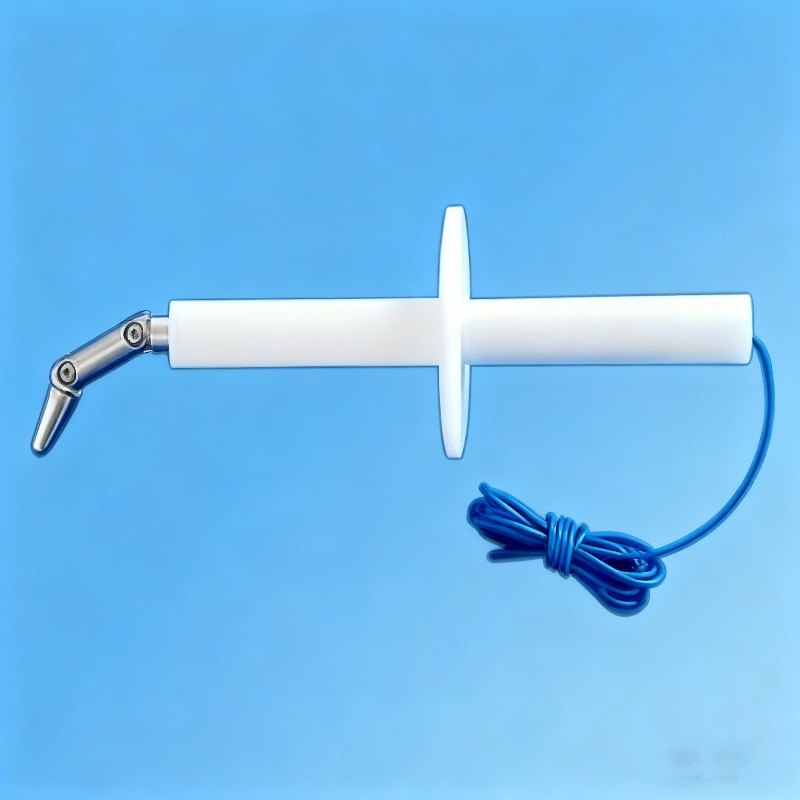

Product Images
