Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

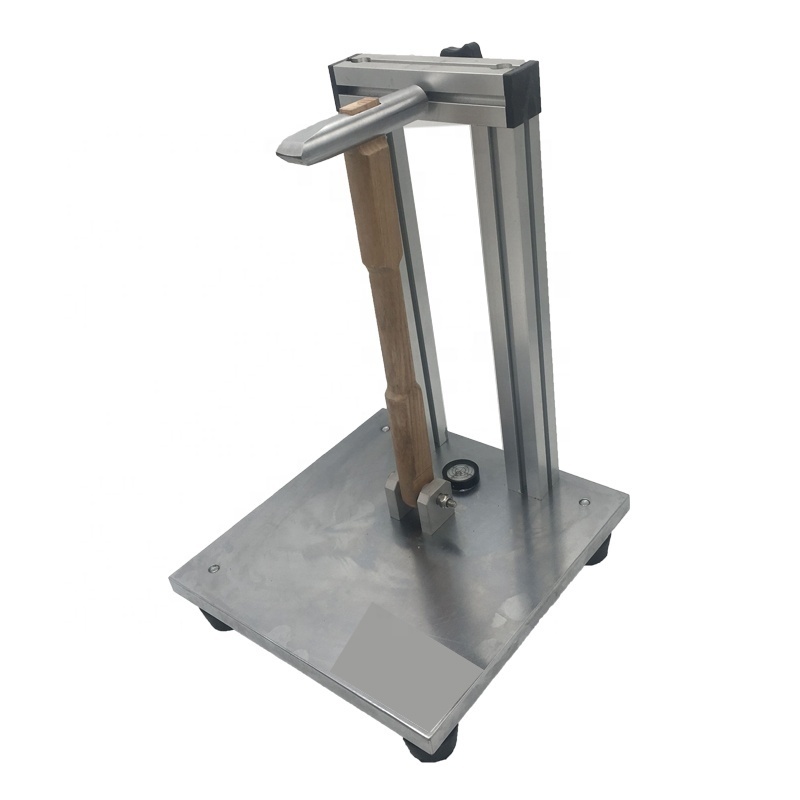

Large Image : Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Galvanized Layer Hammer Adhesion Testing Machine Zinc Coating Adhesion Hammering Tester

Description

Hammer Weight:	210g±1g	Hammer Material:	45 Steel
Hardness Level:	HS40 Or Above	Vertical Height:	300mm±1mm
Hammer Handle Material:	Oak	Base Plate Dimensions:	250x250x15mm
Base Plate Feature:	Horizontal Bubble	Strike Interval:	4mm
Minimum Strike Distance:	10mm From Edges	Protection Class:	IP65
Voltage:	220 V	Test Standard:	GB/T2694-2010, YDT757
Strike Points:	5 Parallel Points	Hammer Orientation:	Perpendicular To Base
Test Method:	Free Fall Hammer
Highlight:	galvanized layer adhesion tester , zinc coating hammering machine , small meter adhesion testing tool

Galvanized Layer Hammer Adhesion Testing Machine

Zinc Coating Adhesion Hammering Tester

This professional testing machine evaluates the adhesion quality of hot-dip galvanized coatings through precise hammer impact testing, ensuring compliance with industry standards.

Product Introduction

Conforms to GB/T2694-2010 and YDT757 standards for drop hammer testing
Evaluates galvanized layer adhesion quality through controlled hammer impacts
Essential for quality control in tower manufacturing and inspection departments

Operation Method

Level the device using the built-in bubble level

Position samples with striking points ≥10mm from edges

Align hammer handle perpendicular to base for free-fall impact

Perform 5 parallel strikes at 4mm intervals

Inspect galvanized layer surface condition without repeating strikes

Maintenance

Unit features rust-proof treatment - protect from dust and moisture

Maintain smooth contact surfaces on all support components

Technical Specifications

Component	Specification
Hammer Weight	210g±1g, 45 steel, hardened to HS40 or above
Drop Height	300mm±1mm from hammer head center to base
Hammer Handle	Premium oak construction
Base Plate	250x250x15mm with integrated leveling bubble
