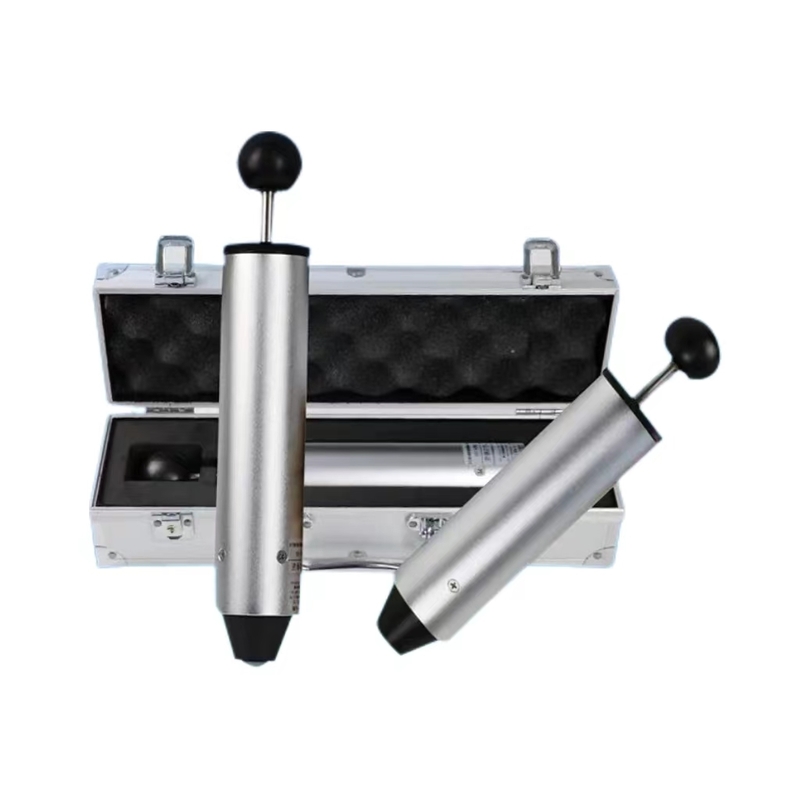

IEC 60068 0.14J Single Impact Hammer

IEC 60068 0.14J Single Impact Hammer
IEC 60068 0.14J Single Impact Hammer

Large Image :  IEC 60068 0.14J Single Impact Hammer

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Model Number: 0.14J
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

IEC 60068 0.14J Single Impact Hammer

Description
Length: 211mm Weight: 1250g
OD: 50mm Hammer Weight: 60g
Hammer Radius: 10mm Release Force: <10N
Impact Components: Hit Ball Handle, Hammer, Weight 250g Hammer Head Material: White Polyethylene Imine
Single Impact Energy: 0.14J, 0.20J, 0.35J, 0.50J, 0.70J, 1.00J, 1.50J, 2.00J Energy Error: ±0.014J (0.14J), ±0.020J (0.20J), ±0.03J (0.35J), ±0.04J (0.50J), ±0.05J (0.70J, 1.00J), ±0.07J (1.50J), ±0.08J (2.00J)
Power Type: Electronic Impact Type: Single
Standard Compliance: IEC 60068-2-75 Impact Energy Range: 0.14J To 2.00J
Impact Component Weight: 250g
Highlight:

IEC 60068 impact hammer

,

0.14J single impact hammer

,

small meter impact tester

IEC 60068 0.14J Single Impact Hammer
The IEC 60068-2-75 Spring Impact Hammer is designed to test the mechanical durability of luminaires, enclosures for electrical appliances, and other electronic products. This instrument simulates mechanical impacts to evaluate the resistance of household and similar electrical appliance components including shells, levers, handles, knobs, and lighting fixtures.
Additional Services & Options
  • CNAS & ILAC certification available
  • IK standard spring impact hammers
  • Custom energy configurations
  • Spring impact hammer calibrators and calibration apparatus
Technical Specifications
Length 211mm
Weight 1250g
OD 50mm
Hammer Weight 60g
Hammer Radius 10mm
Release Force of Impact <10N
Impact Components Includes hit ball handle the hammer (250g weight)
Hammer Head Material White polyethylene imine
Impact Energy Specifications
Single Impact Energy Error
0.14J ±0.014J
0.20J ±0.020J
0.35J ±0.03J
0.50J ±0.04J
0.70J ±0.05J
1.00J ±0.05J
1.50J ±0.07J
2.00J ±0.08J
IEC 60068 0.14J Single Impact Hammer 0 IEC 60068 0.14J Single Impact Hammer 1
