IEC60065 12mm test Finger Probe with 75N Thrust

Large Image : IEC60065 12mm test Finger Probe with 75N Thrust

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-G30

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IEC60065 12mm test Finger Probe with 75N Thrust

Description

Finger Length:	80mm	Finger Diameter:	12mm
Dam-board Diameter:	50mm	Test Force:	15N
Baffle Diameter:	50mm	Baffle Length:	100mm
Thrust Range:	5N ~ 75N	Standard:	IEC61032, IEC60065, IEC60335-1, IEC60884-1
Direct Diameter:	12mm	Direct Length:	80mm
Custom Thrust 1:	10N ~ 50N	Custom Thrust 2:	10N ~ 75N
Custom Thrust 3:	5N ~ 30N	Nodular Length:	80mm
Nodular Diameter:	12mm
Highlight:	IEC60065 test finger probe , 12mm test probe with thrust , 75N thrust test finger

IEC60065 12mm Test Finger Probe with 75N Thrust

This IEC60065-compliant 12mm test finger probe with 75N thrust is designed for electrical safety testing of household appliances, serving as a finger substitute for electronic testing applications.

Key Features

Manufactured in accordance with IEC60132 standards
Used for testing electrical components in household appliances
Simulates finger contact for electronic testing safety evaluations
Compatible with multiple international standards

Technical Specifications
Nodular Finger Length	80mm
Nodular Finger Diameter	12mm
Dam-board Diameter	50mm
Test Force	15N (standard)
Compliance Standards	IEC61032, IEC60065, IEC60335-1, IEC60884-1

Product Overview

This test probe conforms to IEC61032 Figure 7 test kit 11, GB/T16842 test kit 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, and GB4706 standards. It is specifically designed to evaluate the mechanical strength of housing holes or internal baffles in electrical equipment.

Customization Options

Available with 10-50N thrust
Available with 10-75N thrust
Available with 5-30N thrust

Additional Technical Parameters

Direct diameter: 12mm
Direct length: 80mm
Baffle diameter: 50mm
Baffle length: 100mm

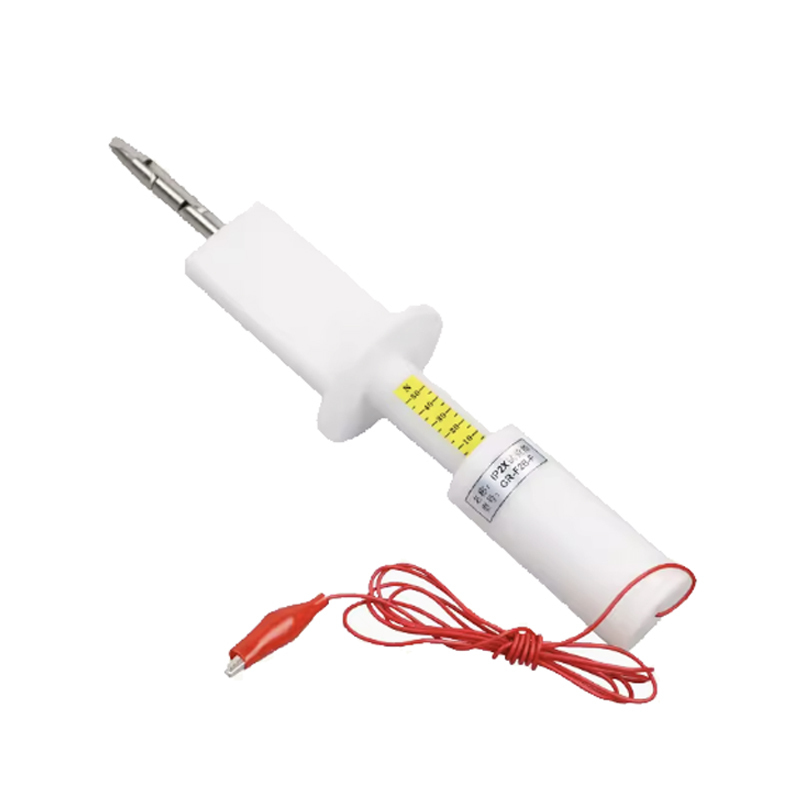

IEC60065 12mm Test Finger Probe

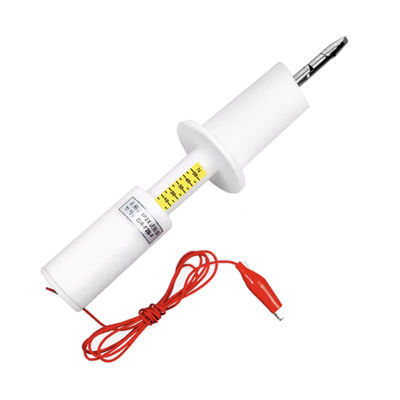

IEC60065 12mm Test Finger Probe - Side View
