IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335
IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335

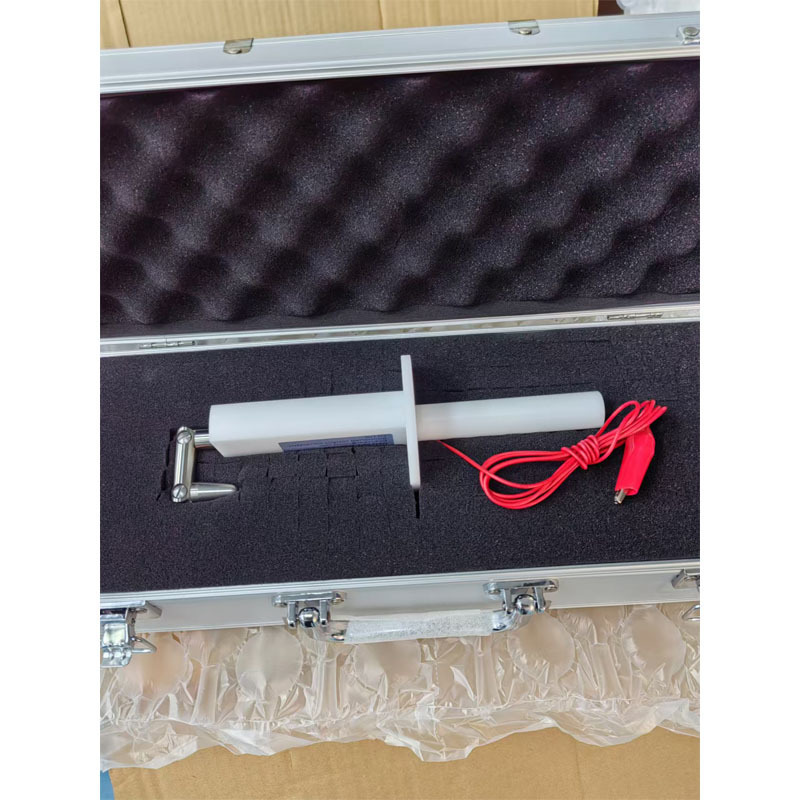

Large Image :  IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335

Description
Finger Diameter: 12mm Finger Length: 80mm
Baffle Diameter: 50mm Baffle Length: 100mm
IP Protection: IP20 Test Standard: IEC61032
Probe Type: Type B Material: Knurled
Compliance Standards: GB4706, GB2099, GB4943, GB/T4208-2008, IEC950, IEC60335, UL507, EN60529 Test Fixture: IEC61032 Figure 2
Application: Electric Shock Protection Test Probe Model: Test Finger B
Design Standard: IEC61032:1997 Test Purpose: Prevent Finger Contact
Probe Category: IP Protection Level Test Kit
Highlight:

IEC61032 test finger probe

,

IEC950 test bend probe

,

IEC60335 test finger B

IEC61032 Test Bend Finger Probe B - Test Finger IEC950 IEC60335
IP20 12mm Test Bend Finger Probe B - Test Finger IEC60335
IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 0
Designed and manufactured according to GB4706, GB2099, GB4943, GB/T4208-2008 IP2, GB3883 figure 1, IEC61032:1997 figure 2 test fixture B, IEC950 figure 2A, IEC60884, IEC60335, GB/T16842 test fixture B, UL507, EN60529 figure 1, and UL1278 figure 8.4 standard model requirements. This protective test probe prevents finger contact or electric shock.
Technical Parameters
  • Knurled Finger Diameter: 12mm
  • Knurled Finger Length: 80mm
  • Baffle Plate Diameter: 50mm
  • Baffle Plate Length: 100mm
IP Protection Level Test Kit
Basic Introduction
1. Complies with GB4706.1, GB2099.1 and relevant IEC61032, UL standards.
2. Test bending refers to the necessary apparatus for the test of electric shock protection of household and similar electrical appliances.
IP Anti-Electric Shock Test Probe / Standard Test Grade for Finger
According to the latest standards of IEC61032 and GB4706.1, the following test probes are available:

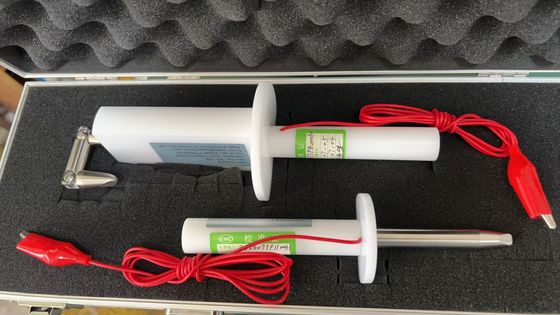

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 1

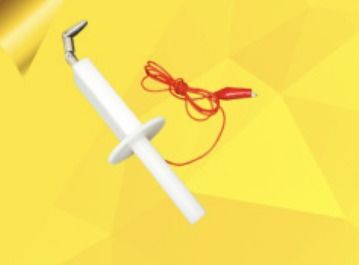

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 2

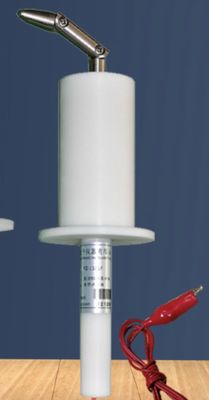

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 3

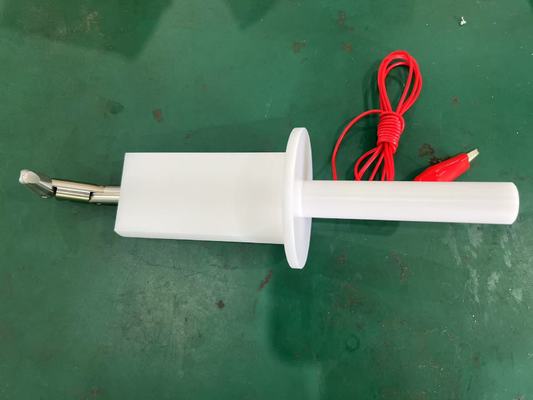

IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 4
IEC61032 Test Bend Finger Probe B Test Finger IEC950 IEC60335 5
