Ultraviolet Curing Machine UV Curing Equipment Materials Printed Surface Curing Drying Testing Instrument

Large Image : Ultraviolet Curing Machine UV Curing Equipment Materials Printed Surface Curing Drying Testing Instrument

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Ultraviolet Curing Machine UV Curing Equipment Materials Printed Surface Curing Drying Testing Instrument

Description

Power:	3.5KW	Voltage:	220V
Input Power:	AC220V 50Hz	Wavelength:	395nm
Light Source:	UV LED	Single Lamp Power:	3000W
Light Sources:	Group 1	Luminescent Size:	400*100mm
Power Adjustment:	20-100%	Control Method:	Button Control
Transmitting Method:	Teflon Mesh Belt	Feed Height:	0-100mm
Protection Class:	IP56	Environmental Temperature:	-10℃ To 40℃
Relative Humidity:	25% - 80% RH
Highlight:	UV curing machine for printing , UV curing equipment with warranty , surface curing drying testing instrument

Ultraviolet Curing Machine UV Curing Equipment

Professional UV curing equipment for coating, bonding, and molding applications with instant curing and drying capabilities for various material surfaces.

Equipment Applications

This UV curing machine is designed for:

Printing: Screen printing, offset printing, letterpress printing, labels, metal nameplates, PC, PVC, ABS, PS, acrylic, ceramics, and electronic components
Coating: Wood surface bright coating, paper glossing, plastic floor tiles, PU leather, and optical fiber surface coating
Bonding: Circuit board components, electronic parts, glass bonding, and liquid crystal sheet sealing
Molding: Decorative colored plates, vessels, and accessories (buttons, hairpins, belt buckles)

Key Components

Serial Number	Project	Brand	Remarks
1	UV LED light source	Sanan	/
2	Power supply	Mingwei/Jiali	/
3	Main Electrical	Mingwei	/
4	Indicator Light/Switch	Yijia	/

Technical Specifications

Serial Number	Project	Unit	Content
1	Input power supply	V	AC220V 50Hz
2	Total device power	KW	3.5KW
3	Wavelength	nm	395nm
4	Single lamp power	KW	3000W
5	Number of light sources	Group	Group 1
6	Light source type	/	UV LED
7	Luminescent size	mm	400*100mm
8	Power adjustment	Table	Power adjustable (20-100%)
9	Control method	Wrap	Button control
10	Transmitting method	Table	Teflon mesh belt
11	Feed inlet height	mm	0 - 100mm (manual adjustment possible)
12	Guarantee period	Year	One year
13	Environmental temperature	℃	-10℃ to 40℃, Relative humidity: 25% - 80% RH
14	Note	/	Customized equipment is non-returnable and non-exchangeable

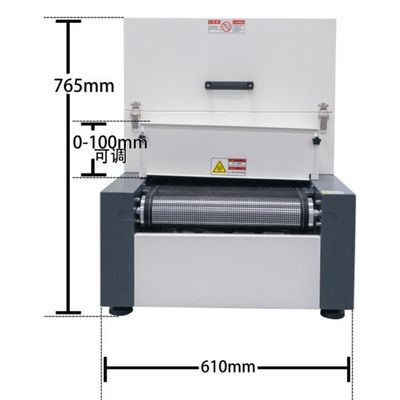

UV Curing Machine front view

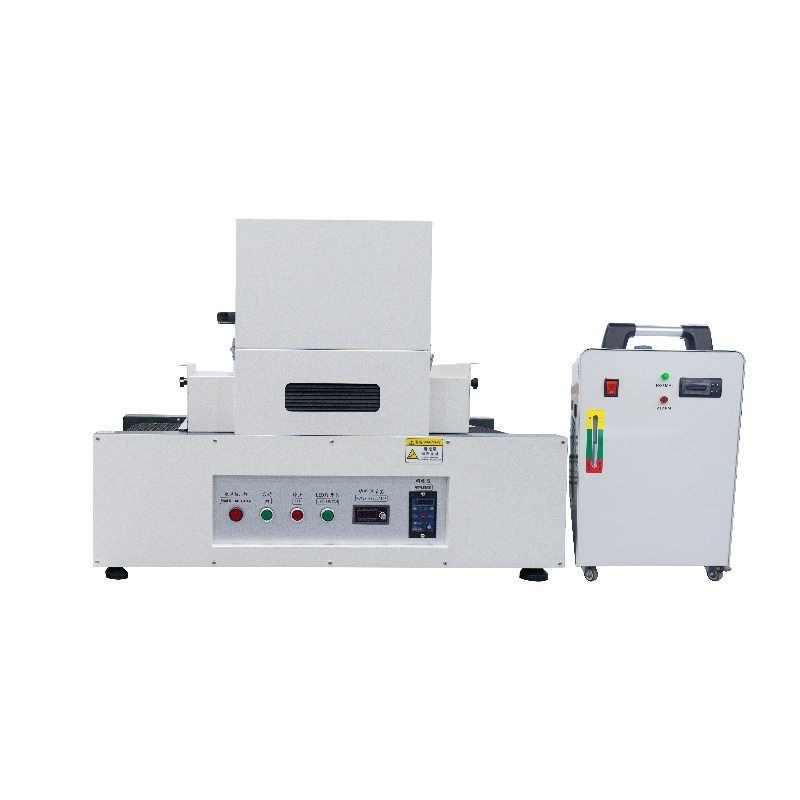

UV Curing Machine side view

UV Curing Machine control panel

UV Curing Machine in operation
