Battery Discharge Testing Machine with IP56 Protection 220V and 380V Voltage for Single Cell Recovery Discharge Equipment

Large Image : Battery Discharge Testing Machine with IP56 Protection 220V and 380V Voltage for Single Cell Recovery Discharge Equipment

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Battery Discharge Testing Machine with IP56 Protection 220V and 380V Voltage for Single Cell Recovery Discharge Equipment

Description

Voltage:	220 V, 380 V	Protection Class:	Ip56
Time Resolution:	1 Second	Timing Accuracy:	±10 Seconds / 24 Hours
Stage Range:	1 - 200 Stages	Cycle Count:	Maximum 65535
Working Mode:	Constant Current Discharge, Constant Power Discharge, Constant Resistance Discharge, Multi-stage Discharge, Multi-stage Cyclic Discharge, Standstill, Pause	Stage Time:	1 Second - 1000 Hours
Record Interval:	1 Second - 1000 Hours	Cycle Nesting:	Maximum 6 Layers
Discharge Voltage:	V~V	Total Current Range:	0A~*A
Current Accuracy:	±0.5% F.S	Current Resolution:	0.01A
Voltage Accuracy:	±0.5% F.S
Highlight:	IP56 Protection Battery Discharge Testing Machine , 220V Voltage Single Cell Recovery Discharge Equipment , 380V Voltage Recycling Discharge Device

Battery Recovery Discharge Testing Machine Single Cell Recovery Discharge Equipment Recycling Discharge Device

This advanced battery recovery discharge testing machine is designed for efficient discharge processes during lithium-ion battery recycling operations. The equipment features customizable configurations and intelligent discharge management for optimal performance.

Specifications and Components

Each unit consists of customizable main channels (quantity adjustable per requirements)
Complete set includes discharge main channels, battery racks, connection lines, and clamps
Versatile crocodile clip battery clamps compatible with both cylindrical and pouch batteries

Equipment Features and Capabilities

Application Scope

Primarily designed for discharge processes in single lithium-ion battery recycling operations.

Key Functions

Parallel Discharge: Each main channel supports simultaneous connection of 20 batteries with independent operation
Safety Protection: Optimized circuit design prevents short circuits, reverse connections, and uncontrolled discharge
Intelligent Equalization: Automatic adjustment of discharge current based on battery voltage (up to 20A)
Voltage Monitoring: Real-time collection and comparison of battery voltages with dynamic display of highest/lowest values
PC Integration: Full equipment control via upper computer software with detailed voltage monitoring
Safety Checks: Automatic battery presence detection (0.5V threshold) with alarm system for contact faults
Data Recording: Automatic generation of termination data when batteries reach set voltage thresholds

Technical Specifications

Parameter	Specification
Main channels per cabinet	Customizable quantity
Auxiliary channels per main channel	20 units
Energy consumption	Discharge energy converted to heat via electronic load
Working modes	Constant current, constant power, constant resistance, multi-stage, cyclic discharge
Stage termination conditions	Time, quantity of cells, ampere-hour
Real-time display	Current, cell voltage, time, stage, mode, Ah, Wh
Time resolution	1 second
Timing accuracy	±10 seconds/24 hours
Stage time range	1 second - 1000 hours
Stage setting range	1-200 stages
Discharge voltage range	Customizable (minimum 1.5V per battery)
Total current range	0A to customizable maximum
Current accuracy	±0.5% F.S (1%-100% range)
Voltage sampling	20 points per channel, 0V-5V range, ±0.5% accuracy
Communication	RS485 to PC, USB/serial connection, supports 200 channels per PC

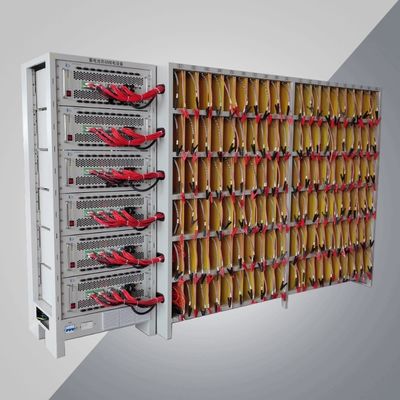

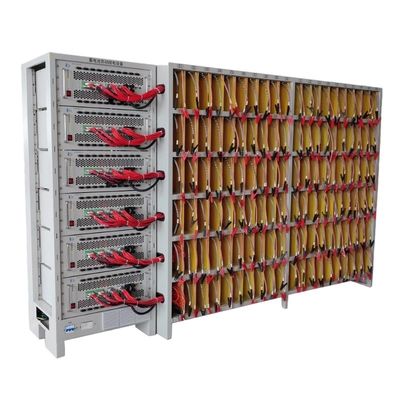

Front view of the discharge testing machine

Detailed view of battery connection interface

Operation panel and control interface
