IP56 Protection Braking Resistor Box with 2kW-350kW Power Range and ≤375℃ Rated Temperature Rise

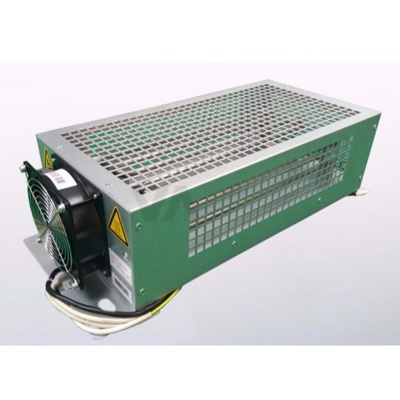

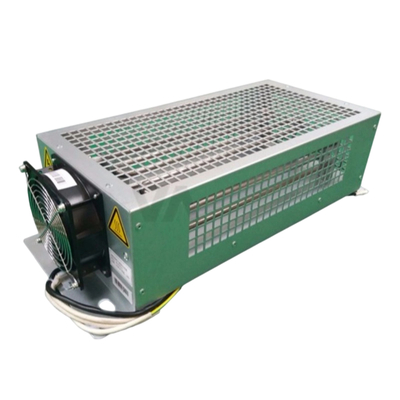

Large Image : IP56 Protection Braking Resistor Box with 2kW-350kW Power Range and ≤375℃ Rated Temperature Rise

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

IP56 Protection Braking Resistor Box with 2kW-350kW Power Range and ≤375℃ Rated Temperature Rise

Description

Voltage:	220 V	Power Range:	2kW-350kW
Rated Temperature Rise:	≤375℃	Environmental Temperature:	-55℃+315℃
Withstand Voltage:	3KV - 30KV Options Available	Protection Level:	IP: 20-23 Options Available
Short-term Load Capacity:	10 Times Power For 6 Seconds	Resistance Range:	0.01Ω - 10KΩ
Resistance Variation:	≤±5%	Protection Class:	Ip56
Type:	Testing Machine	Customized Support:	OEM, ODM, OBM
Application:	Auto Testing, Laboratory Testing, Lab Testing	Accuracy:	---
Power:	---
Highlight:	IP56 Protection Braking Resistor Box , 2kW-350kW Power Range Braking Resistor Box , ≤375℃ Rated Temperature Rise Braking Resistor Box

Braking Resistor Box - Dynamic Braking Resistor Cabinet

Stable Operation DC Low Voltage Braking Resistor Boxes

The braking resistor box is designed for motor rapid stopping processes. It protects frequency converters from motor regenerated electrical energy by directly consuming and converting this energy rather than returning it to the power network. This ensures stable operation and safety of power networks, with applications in electric locomotives and electrically driven diesel locomotives.

Product Features

Utilizes high-quality, large-power resistors developed by Lonroy
Available with various IP protection level enclosures
Options for DC low-voltage and high-voltage braking resistor boxes
Suitable for complex working environments
Excellent heat dissipation and stable operation
High reliability with flexible installation

Technical Specifications

Parameter	Specification
Power range	2kW-350kW
Rated temperature rise	≤375℃
Protection level	IP: 20-23 options available
Short-term load capacity	10 times power for 6 seconds
Resistance range	0.01Ω - 10KΩ
Withstand voltage	3KV - 30KV options available
Resistance variation under rated power	≤±5%
Environmental temperature	-55℃ to +315℃
