High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW-1000KW Rated Power for Load Balance Testing

Large Image : High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW-1000KW Rated Power for Load Balance Testing

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

High Wattage Alloy Plate Type Resistance Cabinet with 220V Voltage and 30KW-1000KW Rated Power for Load Balance Testing

Description

Voltage:	220 V	Load Accuracy:	±5%
Rated Power:	30KW-1000KW	Environmental Temperature:	-10℃~+55℃
Relative Humidity:	≤95%	Voltage Range:	10KV And Below
Power Classification:	0.1KW, 0.5KW, 1KW, 2KW, 5KW, 10KW, 20KW, 50KW, 100KW, 200KW	Working Power Supply:	Single-phase AC 220V/50HZ
Insulation Class:	Class F	Fan Noise:	75 Decibels
Working Mode:	Continuous Operation (>200 Hours)	Altitude:	≤ 2500 Meters
Power Factor:	PF=1	Cooling Method:	Forced Air Cooling
Connection Method:	Copper Busbar Wiring
Highlight:	High Wattage Resistance Cabinet , 220V Voltage Load Balance Testing Machine , 30KW-1000KW Rated Power Resistive Testing Machine

High Wattage Alloy Plate Type Resistance Cabinet High Capacity Load Balance Resistive Testing Machine

Product Overview

This high-power resistance cabinet is designed for use with high-power electrical equipment including inverter power supplies, adjustable DC power supplies, frequency conversion power supplies, and DC motors. Engineered to balance loads and prevent overcurrent conditions, it provides essential protection for critical equipment.

Key Applications

Ships and marine engineering
Power generation and distribution
Port infrastructure
Telecommunications systems
Petroleum and metallurgical industries
Nuclear power facilities

Product Features

Utilizes high-quality load resistors and new alloy resistors
Optimized heat dissipation structure and protection level
Adjustable with remote control capability
Large screen display for real-time data monitoring
High current capacity with precise control accuracy
Excellent heat dissipation performance
Suitable for loading tests of high-power supplies and energy dissipation needs

Technical Specifications

Specification	Details
Voltage Range	10KV and below
Power Classification	0.1KW, 0.5KW, 1KW, 2KW, 5KW, 10KW, 20KW, 50KW, 100KW, 200KW
Load Accuracy	±5%
Working Power Supply	Single-phase AC 220V/50HZ
Insulation Class	Class F
Fan Noise	75 decibels
Working Mode	Continuous operation (single continuous operation time > 200 hours)
Altitude	≤ 2500 meters
Movement Mode	Equipped with heavy-duty swivel casters (2 front, 2 rear)
Protection Functions	Over-temperature alarm, over-voltage protection, over-current protection, undervoltage and fault alerts
Rated Power	30KW-1000KW
Power Factor	PF=1
Display Method	LED displays real-time voltage, current, power, frequency
Control Method	Local panel buttons for manual control
Protection Level	IP20 (suitable for indoor use)
Cooling Method	Enclosed with forced air cooling
Connection Method	Copper busbar wiring
Operating Temperature	-10℃ to +55℃
Operating Humidity	≤95% relative humidity

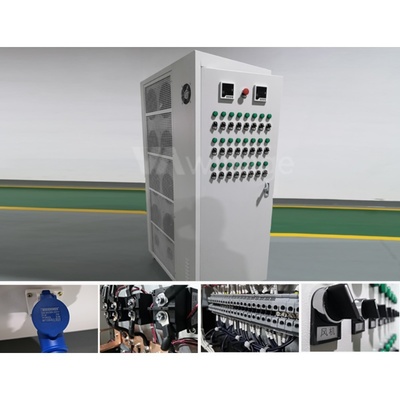

Front view of the resistance cabinet showing control panel and display

Side view showing ventilation and cooling system

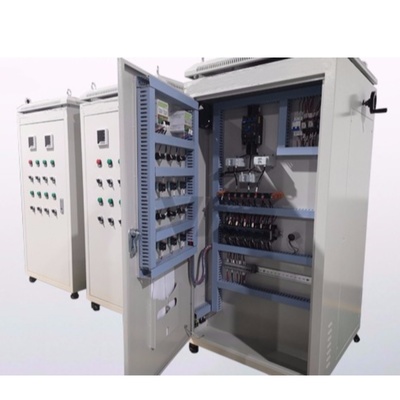

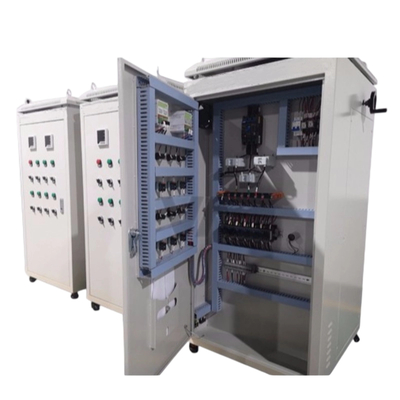

Internal components showing high-quality alloy resistors
