Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty

Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty
Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty

Large Image :  Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty

Description
Voltage: 220 V, 380 V Withstand Voltage: AC2.5KV/1min 50Hz
Rated Temperature Rise: 375℃ Voltage Range: 24V-1KV
Power Range: 10Kvar-2000Kvar Insulation Class: Grade F
IP Rating: IP20-IP23 (optional) Cooling Method: Mandatory Air Cooling, With Air Outlet At The Top
Protection Class: Ip56 Load Type: Industrial-grade Wound Pure Resistive
Control Methods: Selectable Phase Compatibility: Single-phase And Three-phase
Data Display: Real-time Power Density: High
Current Load Range: Wide
Highlight:

220V/380V Voltage Generator Load Tester

,

10Kvar-2000Kvar Power Range Load Testing Cabinet

,

1 Year Warranty Power Load Testing Machine

Loading Testing Cabinet Generator Sets Output Power Test Device

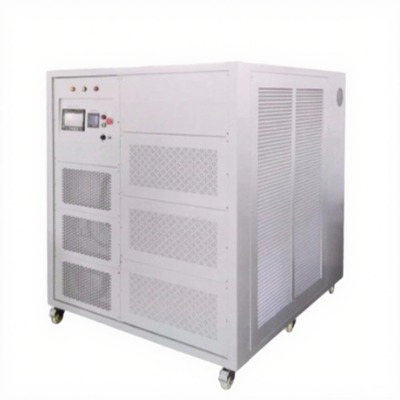

Product Overview

The load test cabinet is a specialized device designed for testing the output power and load capacity of generator sets, high-power UPS power supplies, and inverters. Featuring unified segmented power input, energy-consuming working mode, and forced air cooling for heat dissipation, it ensures reliable constant power discharge.

Key Applications
  • UPS testing
  • Battery testing
  • Charging station testing
  • Relay testing
  • Generator testing
  • Data center testing
  • Inverter testing
  • Research and testing certification
Product Advantages

The cabinet features industrial-grade wound pure resistive load, composed of high-quality dry-type load resistors and new material alloy dummy load resistors. This advanced design offers:

  • Complete resistive load functionality
  • Selectable control methods
  • Simple and convenient operation
  • Compatibility with single-phase and three-phase systems
  • Real-time data display
  • Custom mass production capability
  • High power density
  • Wide current load range
Technical Specifications
Parameter Specification
Power range 10Kvar-2000Kvar
Insulation class Grade F
IP rating IP20-IP23 (optional)
Cooling method Mandatory air cooling, with air outlet at the top
Voltage range 24V-1KV
Withstand voltage AC2.5KV/1min 50Hz
Rated temperature rise 375℃
Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty 0

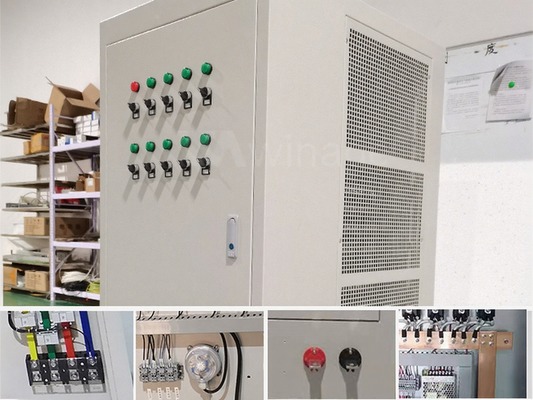

Loading Testing Cabinet Generator Sets Output Power Test Device
Generator Load Tester with 220V/380V Voltage 10Kvar-2000Kvar Power Range and 1 Year Warranty 1
Loading Testing Cabinet Generator Sets Output Power Test Device
