Power Load Box Electrical Power Loading Tester with IP56 Protection 220V Voltage and 1 Year Warranty

Large Image : Power Load Box Electrical Power Loading Tester with IP56 Protection 220V Voltage and 1 Year Warranty

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	LONROY

Payment & Shipping Terms:

Minimum Order Quantity:	1

Contact Now

Power Load Box Electrical Power Loading Tester with IP56 Protection 220V Voltage and 1 Year Warranty

Description

Voltage:	220 V	Protection Class:	IP56
Environmental Temperature:	-10℃ ~ +50 ℃	Altitude:	≤ 2500 Meters
Humidity:	≤95%	Weight:	160KG
Rated Power:	69 Kilowatts	Insulation Class:	Grade F
Cooling Method:	Mandatory Air Cooling	Structural Form:	Install Casters And Pull-push Handles
Rated Frequency:	50HZ	Working Power Supply:	AC 400V Three-phase
Protection Level:	IP20	Working Mode:	Equipped With A Cooling Fan, It Can Operate Continuously.
Power Grading:	NA
Highlight:	IP56 Protection Power Load Box , 220V Voltage Electrical Power Loading Tester , 1 Year Warranty Power Maintenance Testing Machine

Power Supply Load Box Electrical Power Loading Tester

Product Overview

The power load box is designed for maintenance testing, on-off capability assessment, lifespan aging tests, and breaking capacity evaluation of power supplies, switches, relays, circuit breakers, and related equipment.

Key Features

Innovative design with compact size and high reliability
Digital display for simple operation and high intelligence level
Automatically controls constant current for battery capacity testing
Patented electrical components with high power capacity and safety
No open flame operation with extended service life
Pure resistive load with segmented power input
Forced air cooling system ensures reliable constant power discharge
Modular structure for simple operation and easy maintenance
External LCD display for real-time monitoring of power parameters

Technical Specifications

Specification	Detail
Rated power	69 kilowatts (resistive load)
Insulation class	Grade F
Cooling method	Mandatory air cooling
Weight	160KG
Structural form	Equipped with casters and pull-push handles
Altitude	≤ 2500 meters
Rated frequency	50HZ
Working power supply	AC 400V three-phase
Protection level	IP20 (indoor use)
Environmental temperature	-10℃ ~ +50℃
Humidity	≤95%

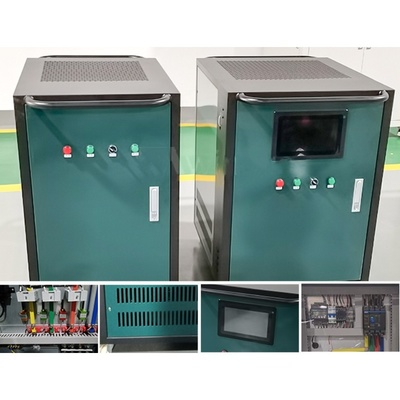

Front view of Power Supply Load Box

Side view showing construction details

Rear view with power connections
