High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring

High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring
High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring

Large Image :  High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: ISO ASTM CE
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: Wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union
Supply Ability: 200
Contact Now

High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring

Description
Voltage: 220 V Protection Class: Ip56
Product Size: 390*288*219mm Screen Size: 8 Inches
Sampling Flow Rate: ≥2L/min Range: 0 - 100 Mg/m3 (TSP Concentration)
Resolution: 0.1μg/m3 Output Channel: 0.25μm To 35μm (31 Channels)
Operating Temperature: -20℃~60℃ Operating Humidity: 0~99%RH
Operating Pressure: 86KPa~110KPa Communication Interface: USB, 4G, RS485, Ethernet
Battery Capacity: 15000mAh Relative Error: ±10% And ±8 μg/m3 @ PM2.5
Battery Duration: Over 20 Hours
Highlight:

31 Particle Size Channels Optical Particle Sizer

,

8-inch Color Display Aerosol Optical Particle Size Spectrometer

,

390*288*219mm Optical Particle Size Detector

Optical Particle Sizer High Precision Aerosol Optical Particle Size Spectrometer

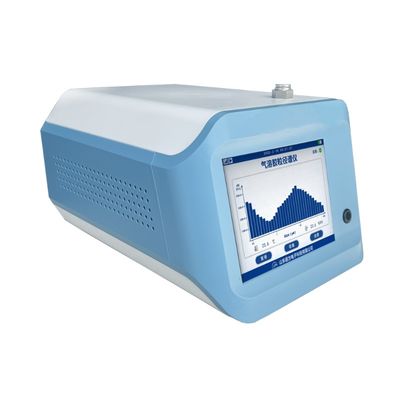

The aerosol optical particle size spectrometer (also known as optical particle size detector) is a particle size analysis instrument based on single-particle laser scattering principle, supporting up to 31 particle size channels. It provides real-time monitoring of mass concentration and particle size distribution, with data upload capability to IoT platforms for online particle monitoring.
Advanced Technology
Utilizing the latest generation Lonroy light scattering particle technology, this spectrometer features carefully calibrated optical and gas path structures, high-frequency weak signal processing circuits, and precision particle recognition algorithms. Compared to previous laser particle size spectrometers, it offers significant improvements in particle size recognition range and accuracy, adapting better to changes in monitoring object composition.
Key Features
  • Monitoring capability: Mass concentration and particle quantity ranging from 0.25 to 35 μm
  • Continuous operation: Designed for 24/7 long-term monitoring
  • High value: Domestic alternative to imported instruments with guaranteed after-sales service
  • Data collection: 4G communication, integrated IoT platform, and multiple data interfaces
  • Extended battery life: Over 20 hours of continuous operation
  • High capacity: 31 channels storing 1.5 million data points
  • Circuit protection: Overcurrent, overvoltage, reverse connection, and 485 lightning protection
  • User-friendly: 8-inch color touchscreen display with real-time readings
  • Reliable design: Sensor array configuration
  • Cloud access: Real-time data upload to IoT platform with PC/mobile viewing
Applications
This aerosol optical particle size spectrometer is ideal for:
- Atmospheric particle laboratory studies
- Powder performance research
- Smoke particle size analysis
- Pollution source analysis
- Migration particle measurement
- Medical and health detection
- Factory emissions monitoring
- Environmental big data collection
- Clean room monitoring in pharmaceutical, electronics, food processing, and precision manufacturing facilities
Technical Specifications
Parameter Specification
Range 0 - 100 mg/m³ (TSP concentration)
Resolution 0.1μg/m³
Output channels 31 channels from 0.25μm to 35μm
Sampling flow rate ≥2L/min
Operating temperature -20℃ to 60℃
Operating humidity 0-99% RH
Atmospheric pressure 86KPa-110KPa
Communication USB, 4G, RS485, Ethernet (includes 3 years domestic 4G data)
Battery capacity 15000mAh (20+ hours continuous operation)
Relative error ±10% and ±8 μg/m³ @ PM2.5 (25℃, 50% RH)
Screen size 8 inches
Product dimensions 390×288×219mm
High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring 0
High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring 1
High Precision Optical Particle Sizer with 31 Particle Size Channels and 8-inch Color Display for Real-time Aerosol Monitoring 2
