ASTM D6304 E1064 Karl Fischer Moisture Meter ISO 10337 Karl Fischer Micro Moisture Analyzer
Introduction

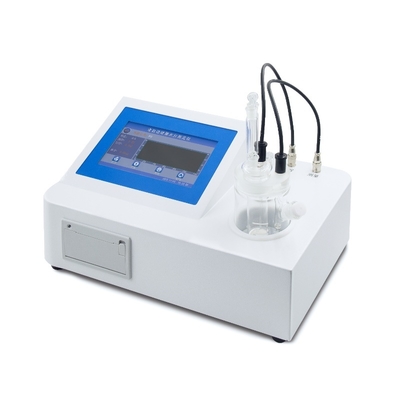

The Karl Fischer micro moisture analyzer is automatically controlled by a single-chip microcomputer. It has self-diagnosis for system failures, a color liquid crystal touch screen, a full Chinese menu, and a more user-friendly interface. It automatically subtracts the blank current, has high accuracy in test results, a large current background compensation function, significantly shortened standby time, a unique reagent failure detection function, and automatically reminds users to replace the failed reagents in time, thereby greatly improving the utilization rate of the reagents. It has built-in multiple calculation formulas for moisture content, which meets the needs of different users.
Product Features
1. This instrument is automatically controlled by a single-chip microcomputer, with self-diagnosis for system faults;
2. Color LCD touch screen, with full Chinese menus, providing a more user-friendly interface;
3. Automatic blank current deduction, resulting in highly accurate test results;
4. Function for detecting expired reagents, automatically alerting users to replace the expired reagents in time;
5. Equipped with an efficient micro printer, with a built-in large-capacity memory, facilitating customers to review and print test reports;
Execution Standards
GB/T 6283-2008 Method for Determining Moisture Content in Chemical Products - Karl Fischer Method
ASTM E1064-2008 Karl Fischer Coulometric Titration Method for Determining Moisture Content in Organic Liquids
GB/T 7600-1987 Method for Determining Moisture Content in Transformer Oil during Operation (Coulometric Method)
ASTM D4928-00(2010) Karl Fischer Coulometric Titration Method for Determining Moisture Content in Crude Oil
ASTM D6304-2007 Karl Fischer Coulometric Titration Method for Determining Water Content in Petroleum Products, Lubricants and Additives
ISO 10337-1997 Method for Determining Moisture Content in Crude Oil - Karl Fischer Coulometric Titration Method
GB/T 11146-2009 Method for Determining Moisture Content in Crude Oil - Karl Fischer Coulometric Titration Method
GB/T 3727-2003 Determination of Trace Moisture in Industrial Ethylene and Propylene (Micro-Coulometric Method)
GB/T 5074-1985 Micro-Coulometric Method for Determining Moisture Content in Pyrolysis Products
GB/T 6023-2008 Determination of Trace Moisture in Industrial Butadiene - Karl Fischer Coulometric Method
GB/T 7376-2008 Determination of Trace Moisture in Industrial Fluorinated Alkane Compounds - Karl Fischer Method
GB/T 18619.1-2002 Determination of Moisture Content in Natural Gas - Karl Fischer Coulometric Method
GB/T 18826-2002 Industrial 1,1,1,2-Tetrafluoroethane HFC-134a
SH/T 0246-1992 Method for Determining Moisture Content in Light Petroleum Products (Electrical Method)
SH/T 0255-1992 Electrical Method for Determining Moisture Content in Additives and Lubricating Oils Containing Additives
ASTM E1064-2008 Karl Fischer Coulometric Titration Method for Determining Moisture Content in Organic Liquids
ASTM D4928-00(2010) Karl Fischer Coulometric Titration Method for Determining Moisture Content in Crude Oil
ASTM D6304-2007 Karl Fischer Coulometric Titration Method for Determining Water Content in Petroleum Products, Lubricants and Additives and other method standards;
Application Scope
Chemical Industry: Alcohols, ethers, acids, benzene derivatives, phenols, organic solvents, etc. applicable for determination by Karl Fischer method
Petroleum and Power Industry: Insulating oil, transformer oil, etc. oil products
Pharmaceutical Industry: Pharmaceutical raw materials, etc. Pesticide Industry: Emulsifiers, fertilizers, pesticides, etc.
Food and Beverage, Surfactants, Cosmetics
Other Industries: Lithium battery electrolyte, etc.
Technical specifications
|
Model
|
LR-Q430
|
|
Display
|
Large screen LCD display or touchscreen
|
|
Determination principle
|
Karl-Fischer coulometric method (also known as electrolysis method)
|
|
Measurement voltage
|
Double platinum electrodes, constant current polarization detection
|
|
Electrolysis current
|
Automatic pulse current 400mA
|
|
Blank current
|
Real-time detection of reagent moisture absorption and intuitive display, automatically deducted
|
|
Stirring speed
|
Stepless speed adjustment
|
|
Determination range
|
0.1μg - 200mg; 1ppm - 100%
|
|
Sensitivity
|
0.1μg
|
|
Accuracy
|
3μg - 500μg: ±3 μg; Above 500μg: 0.3% (excluding sample error)
|
|
Automatic printing
|
Built-in high-efficiency low-noise line thermal printer
|
|
Result display
|
Multiple calculation formulas, automatically display moisture%, ppm, mg/L, etc.
|
|
Instrument self-check
|
Fault self-diagnosis, intuitive reminder to users
|
|
Titration delay
|
Adjustable determination delay time (0 - 999 seconds); ensures complete release of sample moisture before detection for higher accuracy
|
|
Reagent life
|
Automatic tracking of reagent consumption, automatic reminder when expired
|
|
System calibration
|
Built-in calibration program; calibrates via standard samples; enables software micro-adjustment of system gain coefficient to correct to accurate value
|
|
Analysis speed
|
Users can freely select electrolysis speed according to analysis requirements
|
|
History records
|
Can store 500 records (with sample number and time mark) for user query and printing
|
|
Power supply voltage
|
AC 220V ± 10% 50HZ ± 5%
|
|
Size and weight
|
Dimensions: 350mm * 320mm * 160mm; Net weight: 6kg
|
