Surface Roughness Measuring Instrument LR-A089 Mechanical Roughness Analysis Testing Machine

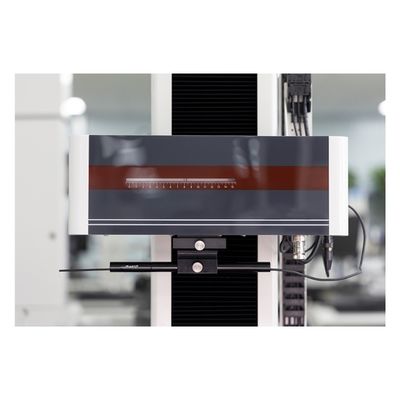

Large Image : Surface Roughness Measuring Instrument LR-A089 Mechanical Roughness Analysis Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-A089

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Surface Roughness Measuring Instrument LR-A089 Mechanical Roughness Analysis Testing Machine

Description

Measuring Range:	±420 μm	Resolution:	655356:1
Indication Accuracy:	≤±(8 Nm + 3.5%)	Warranty:	1year
X-axis Driving Mode:	Electric	Y-axis Driving Mode:	Electric

Surface Roughness Measuring Instrument LR-A089 Mechanical Roughness Analysis Testing Machine

Description

The surface roughness measuring instrument is a measuring device with high precision, multiple functions and convenient operation. It is widely used for detecting the surface roughness of various parts.

The surface roughness measuring instrument adopts an independently developed roughness sensor without a probe head.

With precision guideways as the measurement benchmark, the accuracy is higher and the application scope is wider.

It can easily measure inclined parts and arc-shaped parts.

Technical Parameters

Roughness Accuracy	Measuring Range	±420 μm
	Resolution	655356:1
	Indication Accuracy	≤±(8 nm + 3.5%)
	Residual Noise	≤0.008 μm
	Repeatability	1δ≤1.5 nm
	Cut-off Wavelength	0.025, 0.08, 0.25, 0.8, 2.5, 8 mm
	Evaluation Length	λC×2, 3, 4, 5, 6, 7
Driving Speed	X-axis Driving Mode	Electric
	Y-axis Driving Mode	Electric

Tag:
