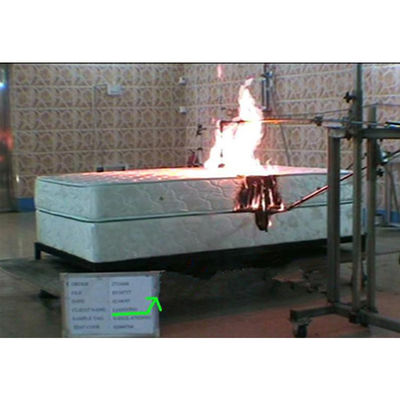

CFR 1633 Mattress Flame Retardancy Tester TB 603 Soft Furniture Flame Retardant Testing Machine

Combustion chamber and air collection hood

Dimensions (length × width × height, mm): 3048 × 3658 × 2438; Door dimensions (width × height, mm): 965 × 2032; Complies with the requirements of Section 7 and Figures 1 and 2 of 16 C.F.R. Part 1633.

Oxygen consumption calorimeter

Range: 75kW - 200kW; Accuracy: ≤ 2kW.

Gas analysis station

Carbon dioxide measurement range: 0 - 6.0%, Accuracy: ± 0.1%; Carbon monoxide measurement range: 0 - 1.0%, Accuracy: ± 0.02%.

Burner device

Includes 1 piece each of mattress burner device, sofa burner device and soft chair burner device; Complies with the requirements of Section 7 and Figures 3, 4, 5, and 6 of 16 C.F.R. Part 1633.

Exhaust gas treatment device

The exhaust gas after combustion meets the requirements for direct discharge.

Gas supply system

Combustion gas: Propane; Gas flow accuracy: ≤ 0.1L/min (when the flow rate is 12.9L/min); ≤ 0.05L/min (when the flow rate is 6.6L/min).

Video system

Meets the requirements of the full-process on-site video recording system as stipulated in the standards.
