FZ/T 81005 Stitched Products Combustion Rate Tester Quilted Textiles Burning Rate Testing Machine

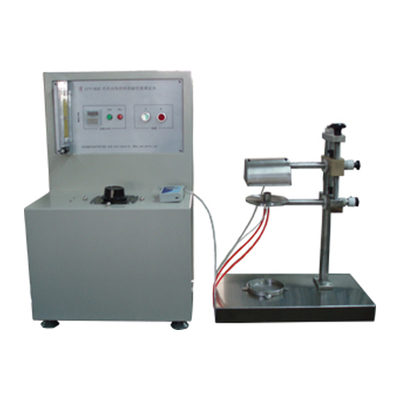

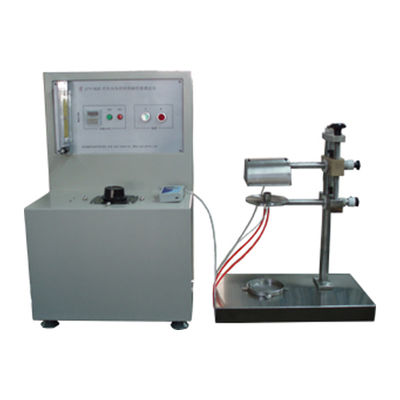

Large Image : FZ/T 81005 Stitched Products Combustion Rate Tester Quilted Textiles Burning Rate Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-A143

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

FZ/T 81005 Stitched Products Combustion Rate Tester Quilted Textiles Burning Rate Testing Machine

Description

Product Name:	Stitched Products Combustion Rate Tester	Customization:	Available
Warranty:	1 Year	Flame Height:	38mm
Sample Size:	30 × 36 (cm)	Dimensions Of The Stainless Steel Combustion Test Chamber:	65cm × 65cm × 70cm
Highlight:	Stitched Products Combustion Rate Tester , FZ/T 81005 Combustion Rate Tester , Quilted Textiles Burning Rate Testing Machine

FZ/T 81005 Stitched Products Combustion Rate Tester Quilted Textiles Burning Rate Testing Machine

Product Introduction

In people's daily lives, various fire hazards are ubiquitous. To reduce the hazards caused by fire accidents resulting from material combustion and spread, and to protect human life and property safety. Quilted products burning rate tester adopts the new advanced technology design, suitable for measuring quilted products using the prescribed ignition flame ignition, the flame in the specimen after the rate of spread of the determination.

Reference standard

FZ/T 81005-2006 Stitched Products, Appendix D Test Method for Burning Rate

Technical specifications

Dimensions of the stainless steel combustion test chamber	65cm × 65cm × 70cm
Time range for combustion	0 - 999.9 seconds. Resolution: 0.1 seconds.
Ignition time	30 seconds. Resolution: 0.1 seconds.
Diameter of the igniter	Inner diameter 10mm.
Sample size	30 × 36 (cm).
Sample support	Concave support made of 3mm stainless steel plate.
Distance from the top of the igniter to the sample	19mm.
Distance between the two marking lines	25cm.
Flame height	38mm.
