DIN 53754 Double Station Taber Abrasion Tester ISO 5470 Materials Wear Resistance Testing Machine

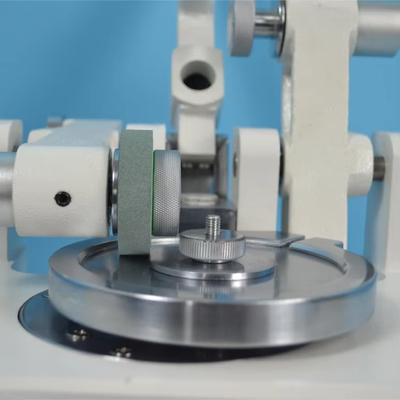

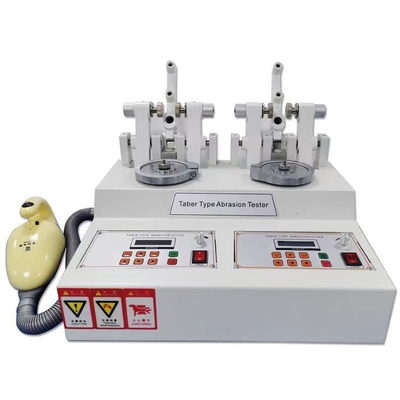

Large Image : DIN 53754 Double Station Taber Abrasion Tester ISO 5470 Materials Wear Resistance Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-F601

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

DIN 53754 Double Station Taber Abrasion Tester ISO 5470 Materials Wear Resistance Testing Machine

Description

Product Name:	Taber Abrasion Tester	Power Supply:	AC 220V
Warranty:	1` Year	Place Of Origin:	Guangdong, China
Load:	250g, 750g, 1000g	Wear Wheel:	Diameter 2 Inches, Width 1/2 Inch
Highlight:	Taber Abrasion Tester , DIN 53754 Taber Abrasion Tester , Double Station Taber Abrasion Tester

DIN 53754 Double Station Taber Abrasion Tester ISO 5470 Materials Wear Resistance Testing Machine

Introduction

The Taber Abrasion Tester is used to test various materials. This instrument has been adopted in many standards and specifications (including plastics, coatings, laminates, leather, paper, ceramics, carpets, safety glass, etc.).

Meet the standards

DIN-53754,53799,53109,52347,TAPPI-T476,ASTM-D1044,D3884,ISO-5470

Technical Specification

Project	Wear Testing Equipment
Wear Wheel	Diameter 2 inches, Width 1/2 inch
Test Tray Rotation Speed	Using stepper motor, 1-100 rpm, adjustable (default setting 60 rpm)
Load	250g, 750g, 1000g
Machine Weight	Approximately 30 kilograms
Power Supply	AC 220V
Counter	0~999999
Specimen Size	Φ110mm, Center Hole φ7.5mm
