AL-ZFB-3000 Mobile High-frequency Constant Voltage X-ray Flaw Detector

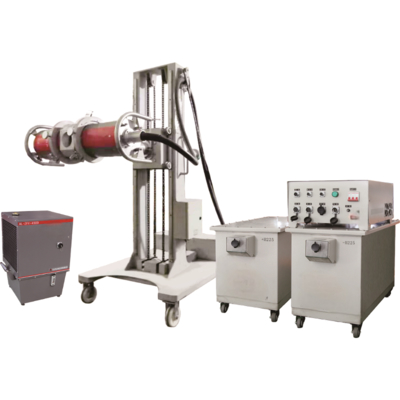

Large Image : AL-ZFB-3000 Mobile High-frequency Constant Voltage X-ray Flaw Detector

Product Details:

Place of Origin:	CHINA
Brand Name:	LONROY
Certification:	CE ISO ASTM
Model Number:	AL-ZFB-3000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	USD
Packaging Details:	WOODEN PACKAGE
Delivery Time:	5-8 WORK DAYS
Payment Terms:	L/C,D/A,D/P,T/T
Supply Ability:	200 PIECES

Contact Now

AL-ZFB-3000 Mobile High-frequency Constant Voltage X-ray Flaw Detector

Description

Highlight:

Constant Voltage X-ray Flaw Detector

Mobile X-ray Flaw Detector

AL-ZFB-3000 Mobile X-ray Flaw Detector

AL-ZFB-3000 Mobile High-frequency Constant Voltage X-ray Flaw Detector

Color touch screen, plastic panel, Chinese display.

It has strong anti-interference ability and high control accuracy.

It can automatically remember the start-up high voltage and shutdown time, and automatically train the operation of the machine.

Parameters such as kilovolts, milliamperes and time can be preset.

Quick safety switch, lead door interlock, and human safety protection.

Timing range: 0.1 to 99.8 minutes, freely selectable. 99.9 minutes can be selected as the non-timing state.

Programmable operation and one-click selection greatly facilitate frequently repetitive detection tasks.

Parameters

Parameter	Specification
Controller	12 kg
Cathode high-voltage generator	70 kg
Anode high-voltage generator	70 kg
Oil cooler	40 kg (oil-free)
Controller	410×500×250 mm
Cathode high-voltage generator	720×360×450 mm
Anode high-voltage generator	720×360×450 mm
Oil cooler	442×423×685 mm
Voltage range	220VAC ±10%
Frequency	50Hz ±2%
Input power	≥5 kW
Output voltage	20kV to 450kV
kV regulation accuracy	1 kV
Output current	30 mA
Duty cycle	Continuous
mA adjustment accuracy	0.1 mA
Host frequency	40 kHz
Maximum output voltage	-225kV (cathode) / +225kV (anode)
Maximum output current	30 mA
Maximum output power	3 kW
