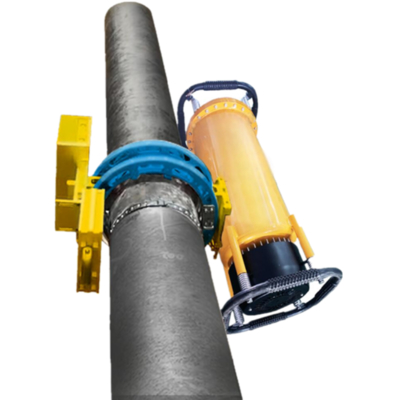

AL-DR-250A Variable Frequency Portable X-ray DR Imaging Device High Frequency X Ray Instrument

System composition

Portable X-ray flaw detector (variable frequency or high frequency)

Digital flat panel detector

Image processing software

Laptop

Automatic detection tooling

Wireless transmission device (optional)

Product features

High detection efficiency

This system adopts digital DR Imaging, directly outputs electronic films, saves the time for film washing and evaluation, and enables immediate acquisition of test results at the construction site.

High radiation safety:

The digital DR Imaging system takes less than 10 seconds for a single image acquisition. After the detection is completed, the radiation is immediately turned off, reducing the radiation impact on personnel and the environment.

More environmentally friendly

This imaging system does not require chemical reagents and does not produce wastewater or waste residue. The detection results are directly saved as electronic images and can undergo digital image processing, making it more convenient and intuitive to display internal welding defects.

Lower cost:

One-time investment requires no other consumables, shortening the detection time and saving the entire project's flaw detection time and personnel costs.

High-precision positioning tooling

Servo motor control enables the detection equipment to rotate and position automatically. Various fixtures are suitable for different pipe diameters, and one-click operation is simple and convenient.

Comply with relevant standards such as SY/T4109-2013 and NB//T47013-2015.

Parameters
