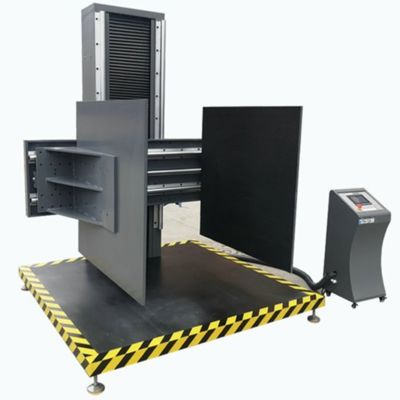

ASTM D6055 Cardboard Clamping Force Tester Carton Clamping Force Testing Machine

Test sample shape

Parallelepiped-shaped transportation packaging unit

Test weight

10 - 300 kg

Clamping force

On the corresponding surface of the test sample, a force ranging from 400 to 3000 Lbs (adjustable) can be applied according to the handling diagram provided

Latch plate surface size

1200 × 1200mm (length × width)

Test space dimensions

1200 × 1200 × 1000mm (length × width × height)

Clamping space

Dimensions 400×1200×120 mm (Note: Unit not specified in original text, assumed to be mm)

Height adjustment of the cradle board

Adjustable from 0 to 1000mm

Lifting speed

Adjustable from 10 to 600 mm/min

Clamping speed

Adjustable from 10 to 50 mm/min

Extension width of the splint

200 - 2000 mm

Transmission method

Servo motor (for left and right clamping)

Bottom plate size

2200 × 2100 mm

Protection device

Leakage protection limit device

Requirements for the clamping plates

The two clamping plates must remain flat and not deform under working conditions (2000 pounds). The two plates are parallel to each other, and the clamping plates are perpendicular to the floor. The thickness of the clamping plates should be no less than 20mm

Force Corrector

With force value display, used to correct clamping pressure

Force accuracy

Standard 1.6 grade

Test operation

The manual control lever simulates the actual operation actions of a forklift to control the clamping, opening, lifting, and lowering movements

Power Supply

AC 220V 50HZ
