Guarded Four-Degree Electromagnetic Vibration Table Oscillation Testing Apparatus

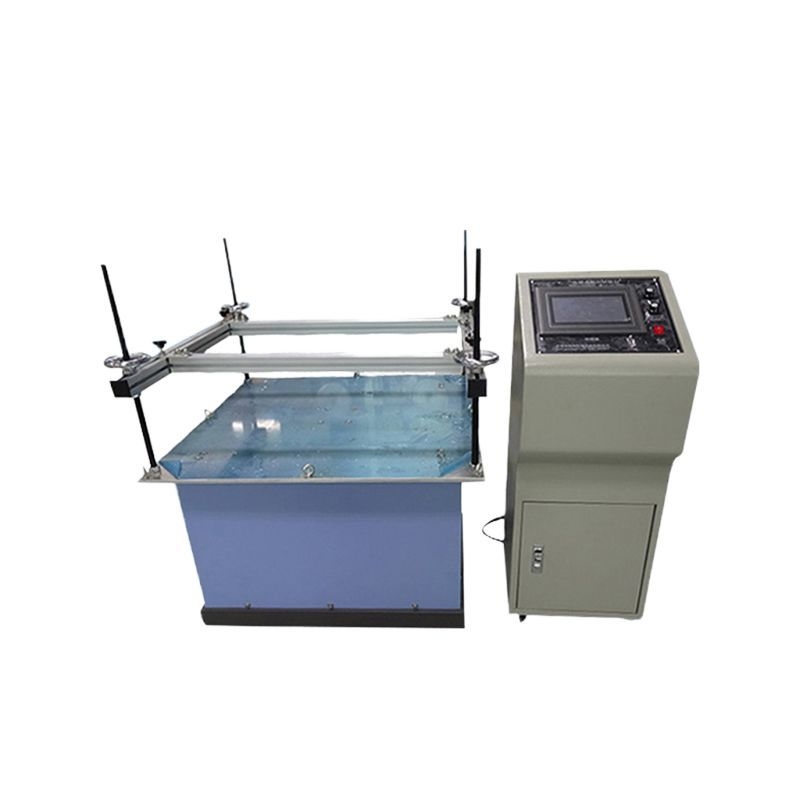

Large Image : Guarded Four-Degree Electromagnetic Vibration Table Oscillation Testing Apparatus

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q049

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Guarded Four-Degree Electromagnetic Vibration Table Oscillation Testing Apparatus

Description

Max. Test Load:	0–60 Kg	Vibration Direction:	Vertical + Horizontal / Front-Back (4-axis Simultaneous Operation)
Key Feature:	Independent Frequency Setting Per Axis	Amplitude:	0–5 Mm (random, Frequency-dependent)
Max. Acceleration:	10G	Functions:	FM / Programmable / Time Control

LR-Q049 Guarded Four-Degree Electromagnetic Vibration Table Oscillation Testing Apparatus

1. Description:

The electromagnetic vibration table is widely used in industries such as national defense, aviation, communications, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of product applications, a broad applicable scope, significant test results, and is reliable. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Technical Parameters:

Parameter	Specification
Max. Test Load	0–60 kg
Vibration Direction	Vertical + Horizontal / Front-Back (4-axis simultaneous operation)
Key Feature	Independent frequency setting per axis
Amplitude	0–5 mm (random, frequency-dependent)
Frequency Sweep	1–600 Hz (true bidirectional sweep; 1–3000 Hz customizable)
Max. Acceleration	10G
Functions	FM / Programmable / Time Control
Precision	Display: 0.01Hz / Accuracy: ±0.1Hz
Programmable Function	1–600 Hz, 1–8 segments (freq/time settable per segment, cyclable)
Octave Function	0.01Hz step: Low→High High→Low Low→High→Low (cyclable)
Logarithmic Function	0.01Hz step: Down→Up Up→Down Down→Up→Down (3 modes, cyclable)
Vibration Waveform	Sine wave (Half-wave / Full-wave)
Time Control	Arbitrary setting (seconds)
Power	0.75 kW
Power Supply	220V 50Hz
