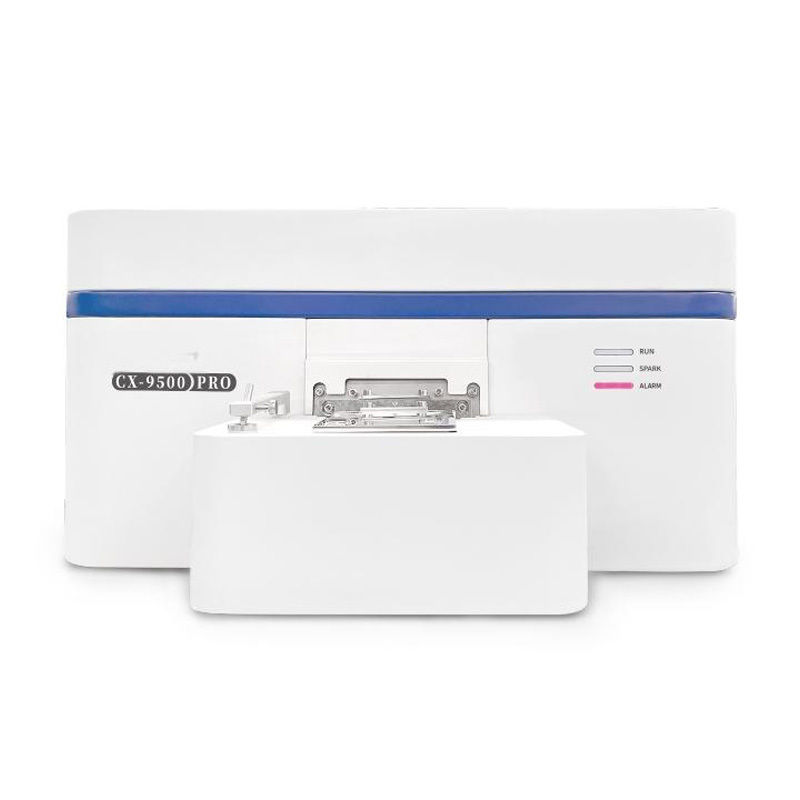

CX-9500PRO Metal Analysis Instrument Optical Emission Spectrometer
Description:
CX-9500PRO spectrometer provides the ideal performance and fit for product assurance testing and material identification. This spectrometer delivers maximum confidence and reliability based on technology.
CX-9500PRO spectrometer is most suitable instruments for the determination of various elements in different matrices. In steel, raw iron, cast iron, non-ferrous metal production a fully or even partially automated analysis results in a cost reduction. In order to meet individual requirements, modular systems have been developed for laboratory automation. This also gives the user a truly spectrometer with multi-base capability (Fe, Al, Cu, Zn, Ti, Ni, Pb, etc) that’s both easy to use and space saved.
Feature
1.High accuracy and affordable.
2.Lower price, optimization through cost reduction,conserving necessary resources.
3.Complete analysis within a few seconds.
4.Optimized to customer requirements and optimal advisory services.
5.Extreme sensitivity due to latest CCD/CMOS technology and software.
6.Adding additional analysis modules without any change of hardware.
7.Technology support and software update for free.
8.Wavelength coverage 170nm-800nm,permitting simultaneous analysis for up to 31 elements.Available for routine analysis of small sample, minimum sample diameter is 1 mm.
9.Configuring as a bench top and humanized design is convenient for moving.and spares.
Applications
CX-9500PRO spectrometer is designed by Wuxi Create Analytical Instrument Co., LTD. By using the technology, the CX-9500PRO is a preferred choice for the analysis of the elements concentration in metal. This instrument is widely used in the areas of metallurgy, foundry, machinery, automobile manufacturing, aerospace industry, weapon manufacture, metal processing and other fields.
Technical Parameter
| Optical Structure |
Pachen-Rounge Mount |
| Diameter of Rowland |
350mm |
| Wavelength Range |
170nm-800nm |
| Detector |
Multi high resolution CCD/CMOS detectors |
| Type of Optic |
Argon flushed |
| Pixel Resolution |
30pm |
| Full Spectrum |
Light room temperature is controlled automatically |
| Light Source |
Digital arc and spark source/ New plasma generator |
| Spark Frequency |
100-1000HZ |
| Plasma Current |
1-80A |
| lgnition Voltage |
>8000V |
| Spark Stand |
Argon flushed with minimal consumption of Argon
Spray discharge electrode technology
Adjustable sample clamp
|
| Measurable Elements |
Fe base, Al base, Cu base, Zn base, ect |
| Dimension |
700mm(L)* 660mm(W)*340 mm(H) |
| Weight |
30kg |
| Storage Temperature |
0℃-45℃ |
| Operating Temperature |
10℃-30℃ 23±2℃ is recommended |
| Power |
AC220V/50Hz |
| Power consumption |
Excitation: 300W, Stand by: 50W |
| Argon Quality |
99.999%, Argon Pressure>4MPa |
| Argon Consumption |
5L/min during spark mode .stand by 0.5L/min |
