Free-Action Screen Height Adjustment Testing Machine Height Modification Testing Equipment

Large Image : Free-Action Screen Height Adjustment Testing Machine Height Modification Testing Equipment

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q043

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Free-Action Screen Height Adjustment Testing Machine Height Modification Testing Equipment

Description

Testing Station:	Single Station	Test Sample:	Freestyle Screen
Force Range:	0–100 Kg	Speed Range:	1–5000 Mm/min (programmable)
Cycle Count Range:	1–99,999,999 Cycles (programmable)	Control System:	PLC Software Programming

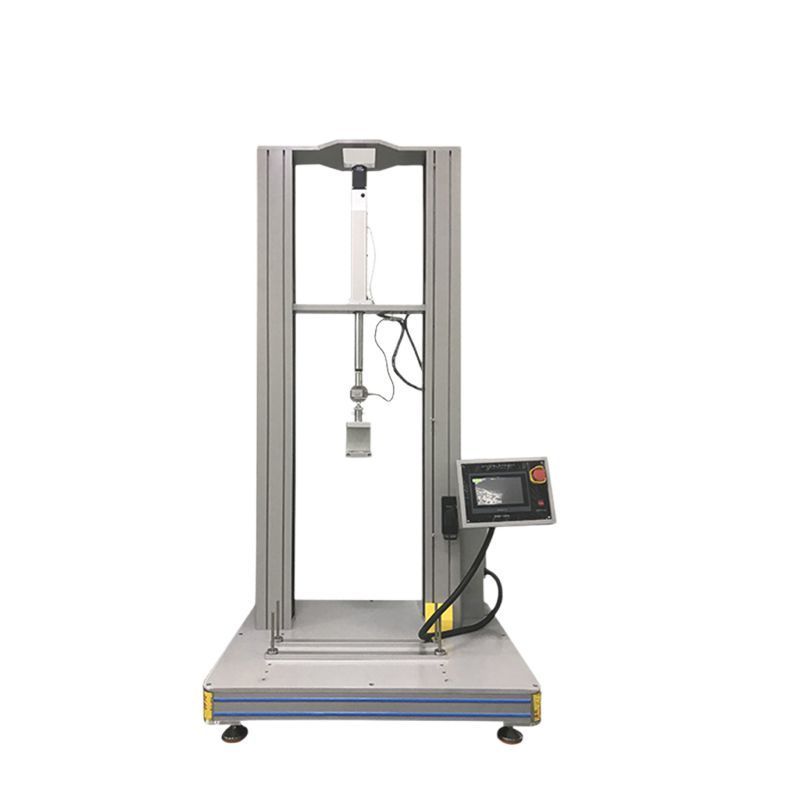

LR-Q043 Free-Action Screen Height Adjustment Testing Machine Height Modification Testing Equipment

1. Product Description

The flexible screen lifting testing machine can simulate the fatigue test of the flexible screen's lifting. By applying certain force values and frequencies, it tests the durability of the flexible screen's lifting.

This machine adopts a touch screen PLC human-machine interface controller and servo cylinder control. It is easy to operate and well-designed. It is a professional testing equipment specifically for the durability of the flexible screen's lifting mechanism.

2. Product Features

For the up-and-down reciprocating test of the activity lifting rod, a counting function is required. The stroke can be adjusted (0 - 300mm), the product height can be adjusted (900 - 1400mm), and the force applied value can be displayed in real time.

3. Technical Parameters

Parameter	Specification
Testing Station	Single station
Test Sample	Freestyle Screen
Force Range	0–100 kg
Speed Range	1–5000 mm/min (programmable)
Cycle Count Range	1–99,999,999 cycles (programmable)
Sample Height Range	900–1400 mm (adjustable height for samples)
Control System	PLC software programming
Display	Color touch screen
Drive Mechanism	Servo motor + Electric cylinder
Construction Material	Aluminum alloy + 45# steel (GB/T 699, tensile ≥600MPa)
Dimensions (L×W×H)	≈850×600×2100 mm
Power Supply	1∮ AC 220V 50Hz
Power	0.4 kw
Net Weight	≈120 kg
