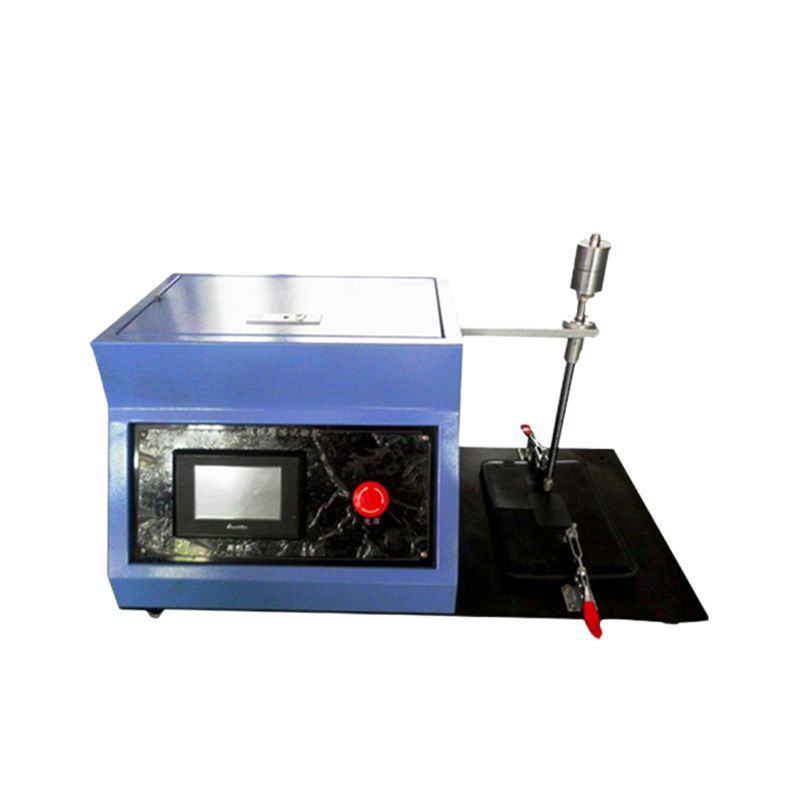

Linear Abrasion Resistance Testing Machine Scratching Wear Test Instrument

Large Image : Linear Abrasion Resistance Testing Machine Scratching Wear Test Instrument

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q039

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Linear Abrasion Resistance Testing Machine Scratching Wear Test Instrument

Description

Test Target:	Coatings / Platings / Surface Treatments	Drive Mechanism:	Electric Motor Drive
Stroke Length:	100 Mm	Positioning Accuracy:	1 Mm Per Unit
Friction Head:	Ball-type (Ø1 Mm Steel Ball)

LR-Q039 Linear Abrasion Resistance Testing Machine Scratching Wear Test Instrument

1. Product Description

This instrument is suitable for testing the wear resistance of products such as plastics, automotive parts, rubber, leather and textiles, electroplating, freely disassembled components, paints, printed patterns, etc. It can be used to assess both the wear resistance and the scratch resistance (single or multiple scratches) of products, as well as the color transfer. Both dry and wet wear tests can be conducted. It can test samples of any size or shape and is particularly ideal for wear tests of products with contoured or polished surfaces (such as the wear resistance test of plastic surface coatings on computer mice and other computer or IT products).

2. Technical Parameters

Parameter	Specification
Test Target	Coatings / Platings / Surface Treatments
Drive Mechanism	Electric Motor Drive
Stroke Length	100 mm
Positioning Accuracy	1 mm per unit
Friction Head	Ball-type (Ø1 mm steel ball)
Motion Guide	Linear Slider Mechanism
Cycle Count Setting	0–999,999 cycles
Testing Speed	Adjustable
Control Interface	PLC Touch Screen
Test Load	200 g (customizable)
Power Supply	220V 50Hz
Power Consumption	200 W
Net Weight	15 kg
