LR-Q032 Battery Pack Drop Test Machine Battery Cell Extrusion Puncture Tester

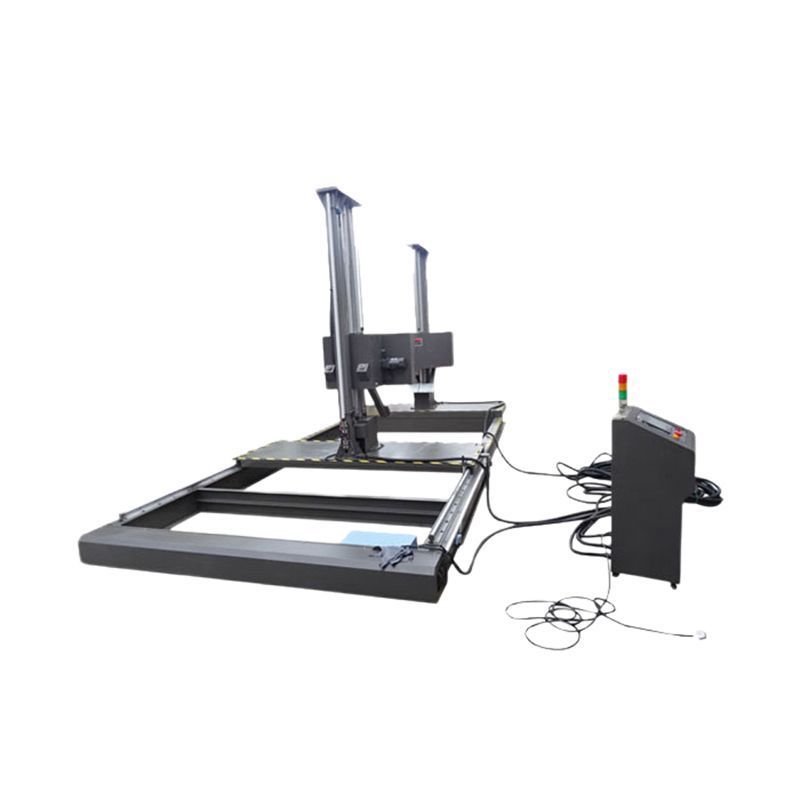

Large Image : LR-Q032 Battery Pack Drop Test Machine Battery Cell Extrusion Puncture Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q032

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

LR-Q032 Battery Pack Drop Test Machine Battery Cell Extrusion Puncture Tester

Description

Max. Load Capacity:	1000 Kg	Specimen Size Range:	200–1500 Mm (PLC-programmable)
Drop Orientations:	Flat Surface & Edges	Impact Media:	Cement Board / Wood Board / Steel Plate (interchangeable)
Control System:	PLC Programming + Electric Drive	Vertical Movement:	AC Servo Motor + Ball Screw + Linear Guide

LR-Q032 Battery Pack Drop Test Machine Battery Cell Extrusion Puncture Tester

1. Product Description

This wire material machine is mainly designed for conducting drop tests on the edges and surfaces of large battery packs. It strictly follows the requirements of standards such as QC/T741-2014, QC/T743-2006, GB/T31467.3-2015, and QC/18333.2-2015, and conducts the drop tests under the specified height and impact medium conditions.

2. Specification

Parameter	Specification
Max. Load Capacity	1000 kg
Specimen Size Range	200–1500 mm (PLC-programmable)
Drop Orientations	Flat surface & Edges
Impact Media	Cement board / Wood board / Steel plate (interchangeable)
Control System	PLC programming + Electric drive
Lateral Movement	Motor-driven ball screw + Linear guide (unilateral)
Vertical Movement	AC servo motor + Ball screw + Linear guide
Height Compensation	Manual adjustment with ruler scale + Jog control
Power Supply	AC 380V 50Hz
Machine Weight	≈2000 kg
