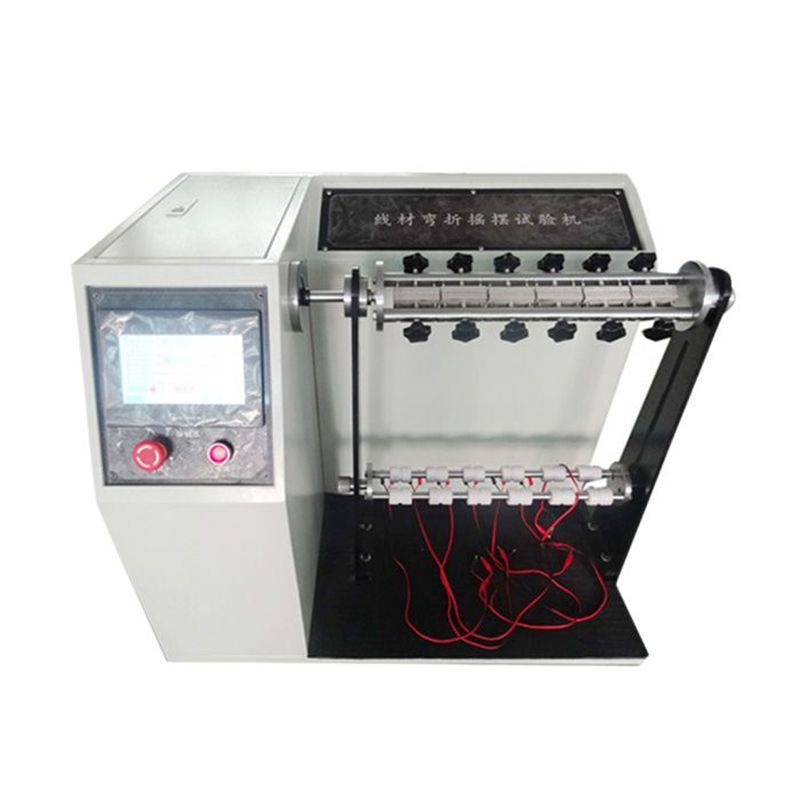

Wire Bending Testing Machine Touchscreen Cable Flexing Tester

Wire Bending Testing Machine Touchscreen Cable Flexing Tester
Wire Bending Testing Machine Touchscreen Cable Flexing Tester

Large Image :  Wire Bending Testing Machine Touchscreen Cable Flexing Tester

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LR-Q031
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiate
Packaging Details: Wooden package
Delivery Time: 5-8 Workdays
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200 PCS
Contact Now

Wire Bending Testing Machine Touchscreen Cable Flexing Tester

Description
Testing Stations: 6 Stations (each With Independent Counter) Test Fixtures: 6 Sets
Wire Diameter Range: 0.1–8 Mm Oscillation Angle: 0–180° Adjustable
Oscillation Speed: 10–60 Rpm (LED Digital Display) Cycle Count Setting: 0–999,999 Cycles (adjustable)

LR-Q031 Touchscreen Wire Bending Testing Machine Cable Flexing Tester

  1. Product Description

The wire bending and swaying testing machine is also known as the wire bending testing machine or the swaying testing machine. This testing machine complies with the regulations stipulated in UL817 and other relevant standards regarding "General Safety Requirements for Soft Wire Components and Power Soft Wire". It is suitable for manufacturers and quality inspection departments to conduct bending tests on power cables and DC cables. This machine can test the bending strength of plug leads and wires. After fixing the test sample in the fixture and applying weight, it bends the sample to the predetermined number of times, and then checks the breakage rate or automatically stops the machine when it cannot be powered on to inspect the total number of bending times.

  2. Specification

Parameter

Specification

Testing Stations

6 stations (each with independent counter)

Test Fixtures

6 sets

Wire Diameter Range

0.1–8 mm

Oscillation Angle

0–180° adjustable

Oscillation Speed

10–60 rpm (LED digital display)

Cycle Count Setting

0–999,999 cycles (adjustable)

Fixture Radius

R12.7

Calibration Weights

50g, 100g, 200g, 300g, 500g (6 sets each)

Dimensions (L×W×H)

850×600×750 mm

Net Weight

≈100 kg

Power Supply

AC 220V 50Hz
