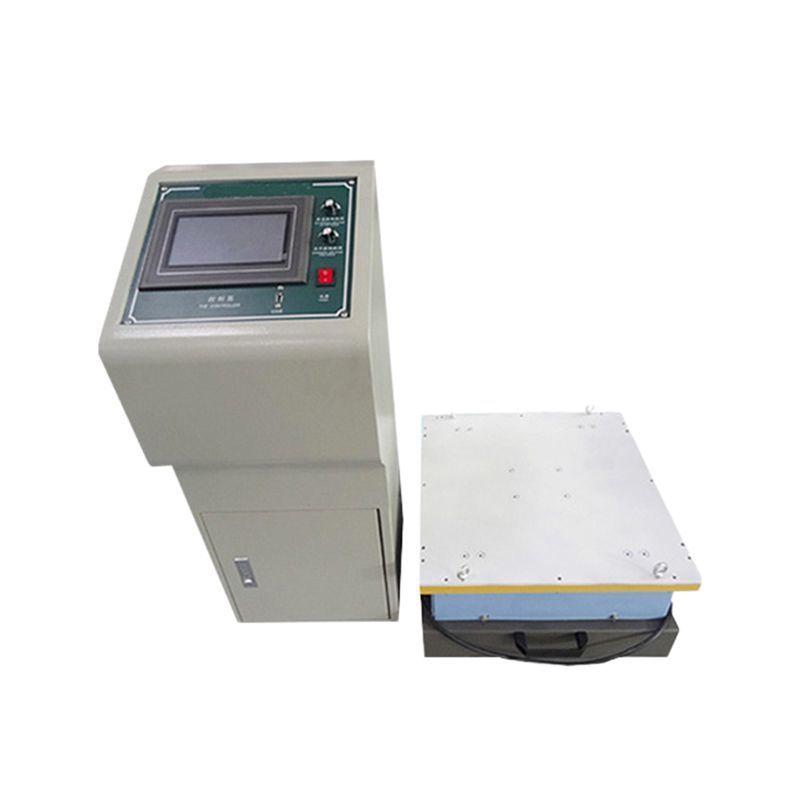

Assessing Vertical Vibrate Device Touchscreen Electromagnetic Vertical Vibration Tester

Large Image : Assessing Vertical Vibrate Device Touchscreen Electromagnetic Vertical Vibration Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q028

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Assessing Vertical Vibrate Device Touchscreen Electromagnetic Vertical Vibration Tester

Description

Parameter Category:	Specification	Max. Test Load:	0–60 Kg
Vibration Direction:	Vertical (Y-axis)	Table Size:	500×500 / 750×750 / 1000×1000 / 1500×1500 Mm
Amplitude:	0–5 Mm	Frequency Sweep:	1–600 Hz (1–3000 Hz Customizable)

LR-Q028 Assessing Vertical Vibrate Device Touchscreen Electromagnetic Vertical Vibration Tester

1. Product Description

The electromagnetic vibration table is widely used in industries such as national defense, aviation, communications, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of product applications, a broad applicable scope, significant test results, and is reliable. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Specification

Parameter Category	Specification
Max. Test Load	0–60 kg
Vibration Direction	Vertical (Y-axis)
Table Size	500×500 / 750×750 / 1000×1000 / 1500×1500 mm
Amplitude	0–5 mm
Frequency Sweep	1–600 Hz (1–3000 Hz customizable)
Max. Acceleration	10G
Functions	FM / Programmable / Time Control
Precision	Display: 0.01Hz / Accuracy: ±0.1Hz
Programmable Function	1–600 Hz, 1–8 segments (cyclable)
Octave Function	0.01Hz step: ① Low→High ②High→Low ③ Low→High→Low (cyclable)
Logarithmic Function	0.01Hz step: ①Down→Up②Up→Down ③ Down→Up→Down (cyclable)
Vibration Waveform	Sine wave (Half-wave / Full-wave)
Time Control	Arbitrary seconds
Power	0.75 kW
Power Supply	220V 50Hz ±10%
Net Weight	≈100 kg
