Touchscreen Vertical Horizontal Vibration Testing Machine Axis Vibration Testing Apparatus

Large Image : Touchscreen Vertical Horizontal Vibration Testing Machine Axis Vibration Testing Apparatus

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q027

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Touchscreen Vertical Horizontal Vibration Testing Machine Axis Vibration Testing Apparatus

Description

Maximum Test Load:	0–60 Kg	Vibration Direction:	Up/Down + Left/Right / Front/Back
Table Size:	500×500 / 750×750 / 1000×1000 / 1500×1500 Mm	Amplitude:	0–5 Mm
Frequency Sweep:	1–600 Hz	Functions:	FM / Programmable / Time Control

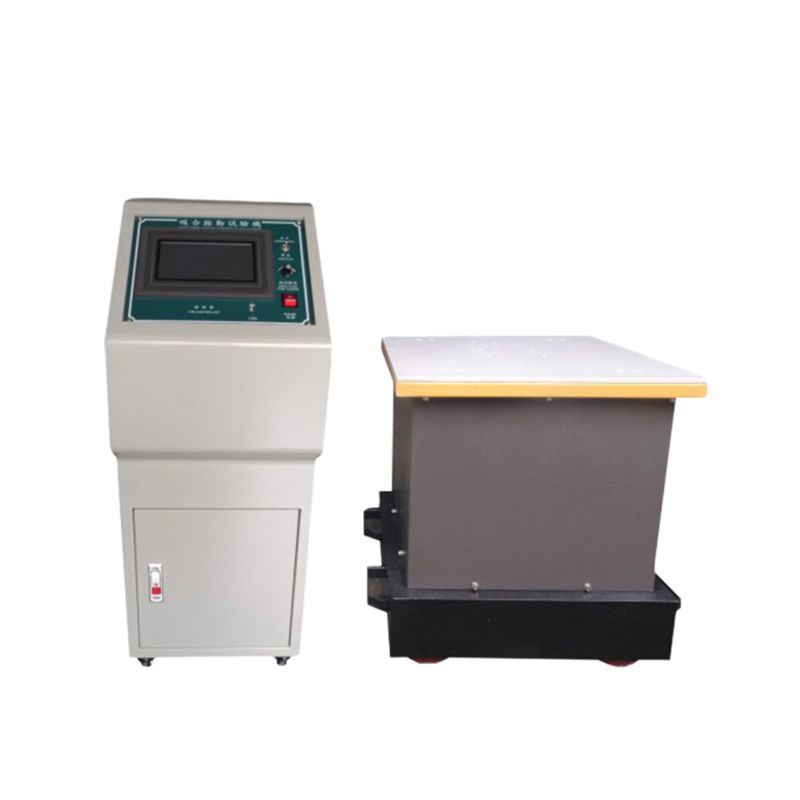

LR-Q027 Touchscreen Vertical Horizontal Vibration Testing Machine Axis Vibration Testing Apparatus

1. Product Description

Electromagnetic vibration tables are widely used in industries such as national defense, aviation, communication, electronics, automobiles, home appliances, etc. This type of equipment is used to detect early faults, simulate actual working conditions for assessment and structural strength tests. It has a wide range of applications, broad applicability, significant and reliable test results. It supports sine wave, frequency modulation, sweep frequency, programmable, frequency doubling, logarithmic, and time control.

2. Specification

Parameter Category	Technical Specification
Maximum Test Load	0–60 kg
Vibration Direction	Up/Down + Left/Right / Front/Back
Table Size	500×500 / 750×750 / 1000×1000 / 1500×1500 mm
Amplitude	0–5 mm
Frequency Sweep	1–600 Hz
Max. Acceleration	10G
Functions	FM / Programmable / Time Control
Precision	Display: 0.01Hz / Accuracy: ±0.1Hz
Programmable Function	1–600 Hz, 1–8 segments
Octave Function	0.01Hz step
Logarithmic Function	0.01Hz step
Vibration Waveform	Sine wave
Time Control	Arbitrary setting (seconds)
Power	0.75 kW
Power Supply	220V 50Hz
