Horizontal Insertion and Removal Life Testing Machine Insert Life Cycle Test Apparatus

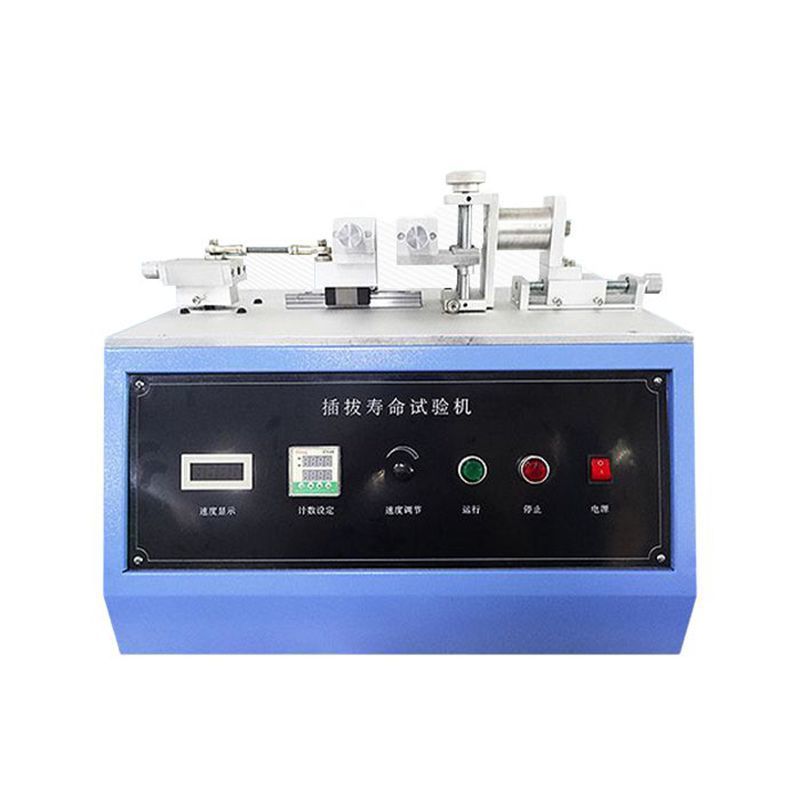

Large Image : Horizontal Insertion and Removal Life Testing Machine Insert Life Cycle Test Apparatus

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q024

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Horizontal Insertion and Removal Life Testing Machine Insert Life Cycle Test Apparatus

Description

Speed Setting:	Adjustable From 10 To 60 Times Per Minute	Speed Display:	LED Digital Display
Counting Function:	6-digit Counter From 0 To 999999	Travel Range:	Travel Can Be Adjusted From 0 To 80mm
Test Station:	Single Station	Operation Direction:	Horizontal (X-axis)

LR-Q024 Horizontal Insertion and Removal Life Testing Machine Insert Life Cycle Test Apparatus

1. Product Description

This machine is suitable for various connector insertion and removal life tests. It allows for setting the number of tests, adjustable speed and retraction stroke, and displays the degree value. It is the most cost-effective insertion and removal life testing machine available on the market today.

2. Specification

Test station	Single station
Operation direction	Horizontal (X-axis)
Speed setting	Adjustable from 10 to 60 times per minute
Speed display	LED digital display
Counting function	6-digit counter from 0 to 999999
Travel range	Travel can be adjusted from 0 to 80mm
Fixture	Adjustable according to customer product design
Operating mode	Electric
Power supply	220V/50HZ 90W
Weight	60kg
