Computer-type Notebook Rotating Lid Life Testing Machine

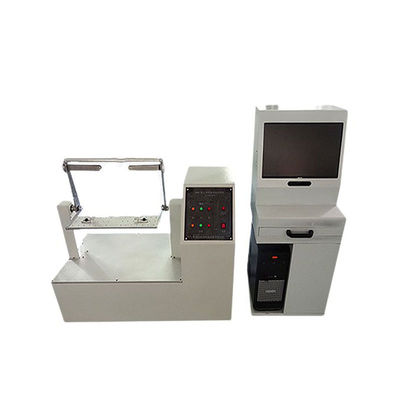

Large Image : Computer-type Notebook Rotating Lid Life Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q020

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Computer-type Notebook Rotating Lid Life Testing Machine

Description

Rotation Angle:	0 - 360°, Programmable At Will.	Rotation Count:	0 - 99999999 (8-bit Counting), Programmable At Will.
Rotation Speed:	0 - 20 Times/min, Programmable At Will.	Transmission Method:	AC Servo Motor Transmission.
Control Mode:	Using PLC Program And 7" Touch Screen Control.	Power Supply:	220V 50Hz
Weight:	Approximately 70KG

LR-Q020 Computer-type Notebook Rotating Lid Life Testing Machine

1. Product Description

This machine is specially designed for the lifespan fatigue of notebook computer hinges. It enables the automatic adjustment of angles ranging from 0 to 360 degrees, as well as the editing of fatigue life, counting of fatigue life, and conducting long-term fatigue life tests under certain rotational speeds to ensure product quality.

2. Product Features

This machine is composed of Panasonic servo motors, PLC programs, 7-inch touch screens, imported bearings, alloy aluminum lamp components, etc. It is professionally designed to be user-friendly and simulate real users. The structure, performance, safety and reliability of this machine make it a professional testing equipment specifically for 360°rotation of laptops.

3. Specification

Rotation angle	0 - 360°, programmable at will.
Rotation count	0 - 99999999 (8-bit counting), programmable at will.
Rotation speed	0 - 20 times/min, programmable at will.
Transmission method	AC servo motor transmission.
Control mode	Using PLC program and 7" touch screen control.
Structural mode	Vertical rotation motion of the product and Horizontal suspended motion of the product
Electronic accessories	Using imported accessories, electronic and switch accessories.
Test product size	0" - 15" notebook can be adjusted with fixtures at will.
Material	A3 steel spraying, aluminum oxide treatment.
Dimensions	Approximately
Power supply	220V 50Hz
Weight	Approximately 70KG
