Brake Ribbon Abrasion Tester Brake Band Friction Testing Equipment Rubbing Wear Lab Testing Machine

Large Image : Brake Ribbon Abrasion Tester Brake Band Friction Testing Equipment Rubbing Wear Lab Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-HCBB

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Brake Ribbon Abrasion Tester Brake Band Friction Testing Equipment Rubbing Wear Lab Testing Machine

Description

Test Load :	0 - 1000 N (measurement Error ± 0.5%)	Speed (stepless Speed Control) Rotation Mode:	0 - 1000 Revolutions Per Minute
Angular Acceleration:	-50 - 50 Rad/s² (measurement Error ± 1%)	Warranty:	1 Year

Brake Ribbon Abrasion Lab Tester Brake Band Friction Testing Equipment Rubbing Wear Lab Testing Machine

Product Introduction

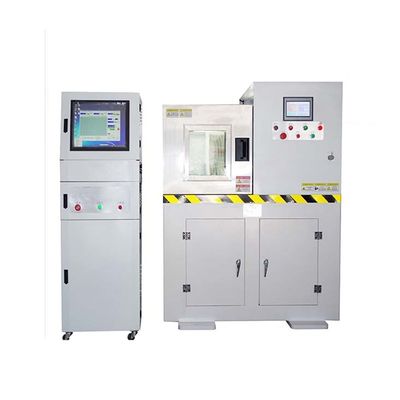

The LR-HCBB type brake belt friction wear testing machine is mainly used to test the wear resistance, braking performance and service life of brake belts under both constant temperature and humidity conditions and normal temperature conditions. It can also help understand the heat generation situation of the brake belts during the testing process.
This machine is of a frame structure. All test parameters are set in a modular manner, making the operation convenient. The test readings are accurate and reliable. Through the computer, it is easy to control each parameter, and the friction force-time and temperature-time curves can be displayed in real time. Moreover, the curves can be recorded, saved and printed.

Product Parameter

Test load	0 - 1000 N (measurement error ± 0.5%)
Speed (stepless speed control) Rotation mode	0 - 1000 revolutions per minute
Angular acceleration	-50 - 50 rad/s² (measurement error ± 1%)
Environmental temperature setting and measurement control range	-15 - 60℃
Draw chart curves	Load - time, friction force (moment) - time, surface temperature - time, cavity temperature - time, cavity humidity (environmental humidity) - time, linear velocity - time, friction coefficient - time curves, wear rate - time
Measurement time range	0 - 99999 seconds / 99999 minutes, stored curves and data within the test period
