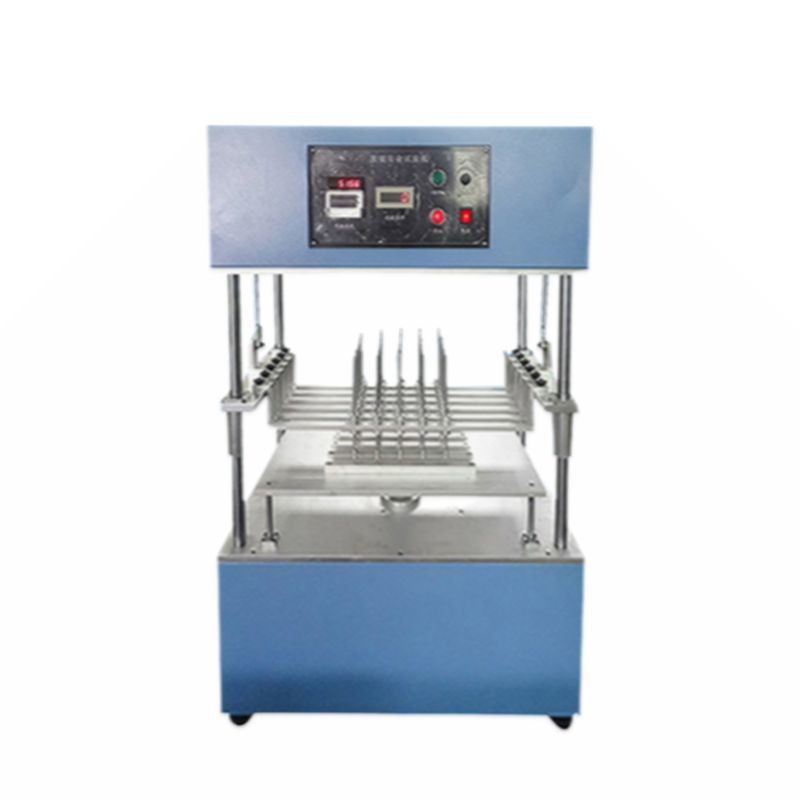

Key Press Life Testing Machine (30 Stations) Button Key Durability Tester

Large Image : Key Press Life Testing Machine (30 Stations) Button Key Durability Tester

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q013

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Key Press Life Testing Machine (30 Stations) Button Key Durability Tester

Description

Test Station:	30 Stations	Speed Adjustment:	10 - 60 Times Per Minute, Adjustable
Speed Display:	LED Digital Direct Display Of Reading	Transmission Method:	Electric (Taiwan Imported Linear Slider Structure)
Weights:	One Set Each Of 50g, 100g, 200g, And 300g	Movement Mode:	Vertical Movement
Fixture Design:	Customized According To Customer's Products

LR-Q013 Key Press Life Testing Machine (30 Stations) Button Key Durability Tester

1. Product Description

The key life testing machine can conduct life tests on mobile phones, telephones, electronic product keys, remote control keys, silicone rubber keys, silicone rubber products, etc. It is suitable for testing various types of keys such as push switches, touch switches, and film switches.

This machine features adjustable speed, adjustable height, and arbitrary setting of the number of tests. It can also test multiple products (each product can be tested at multiple points). Each key can be set to different pressure tests, providing user-friendly operation and meeting different testing requirements of customers.

2. Specification

Test station	30 stations (working simultaneously and counting simultaneously)
Speed adjustment	10 - 60 times per minute, adjustable
Speed display	LED digital direct display of reading
Counting function	0 - 999999 times, adjustable counting stop function (with power-off memory protection)
Transmission method	Electric (Taiwan imported linear slider structure)
Weights	One set each of 50g, 100g, 200g, and 300g
Movement mode	Vertical movement
Fixture design	Customized according to customer's products
Lifting function	Manual adjustment of the product
Working power supply	220V/50Hz
Machine weight	Approximately 35KG
