Key Life Testing Machine With 8-Position Independent Control

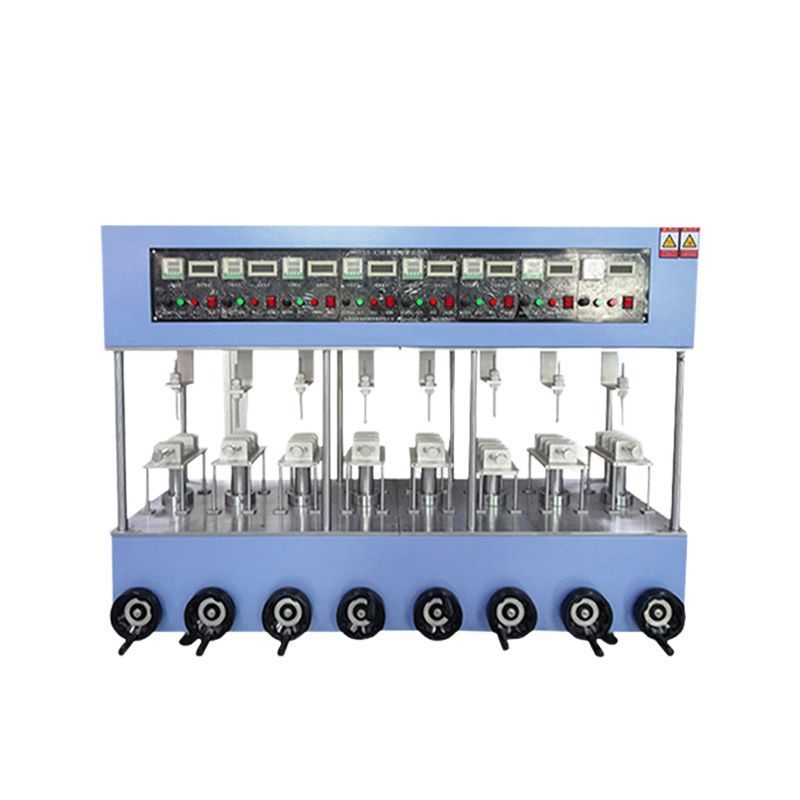

Large Image : Key Life Testing Machine With 8-Position Independent Control

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q010

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

Key Life Testing Machine With 8-Position Independent Control

Description

Test Station:	8 Stations	Test Speed:	Adjustable And Set From 0 To 60 Times Per Minute
Test Stroke:	Adjustable From 0 To 10mm	Test Count:	Can Be Set Arbitrarily For Counting And Stopping, With Power-off Memory Protection Function
Action Mode:	Electrically Driven To Move The Key Head For Operation	Test Weight:	50g, 100g, 200g, 300g, 500g
Power Supply:	AC 220V 50Hz

LR-Q010 8-Position Independent Control Key Life Testing Machine

1. Product Description

This device is mainly used to test the service life of silicone buttons and metal spring buttons on mobile phones, mice, keyboards, remote controls, etc., as well as the service life of micro switches and rubber switches. It is applicable to the service life of all types of buttons.

2. Specification

Test station	8 stations
Test speed	Adjustable and set from 0 to 60 times per minute
Test stroke	Adjustable from 0 to 10mm
Test count	Can be set arbitrarily for counting and stopping, with power-off memory protection function
Action mode	Electrically driven to move the key head for operation
Test weight	50g, 100g, 200g, 300g, 500g
Test fixture	The fixture will be made according to the samples provided by your company, and can be flexibly adjusted
Power supply	AC 220V 50Hz
