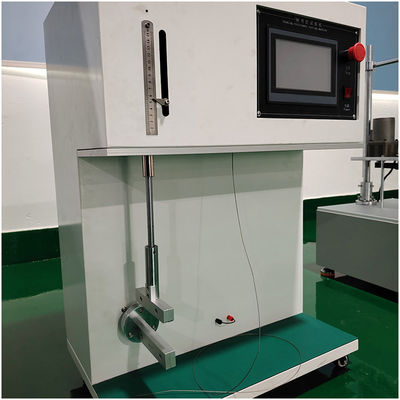

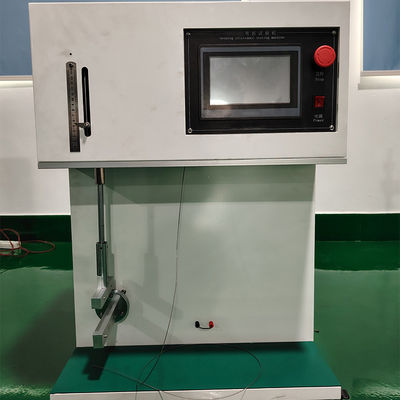

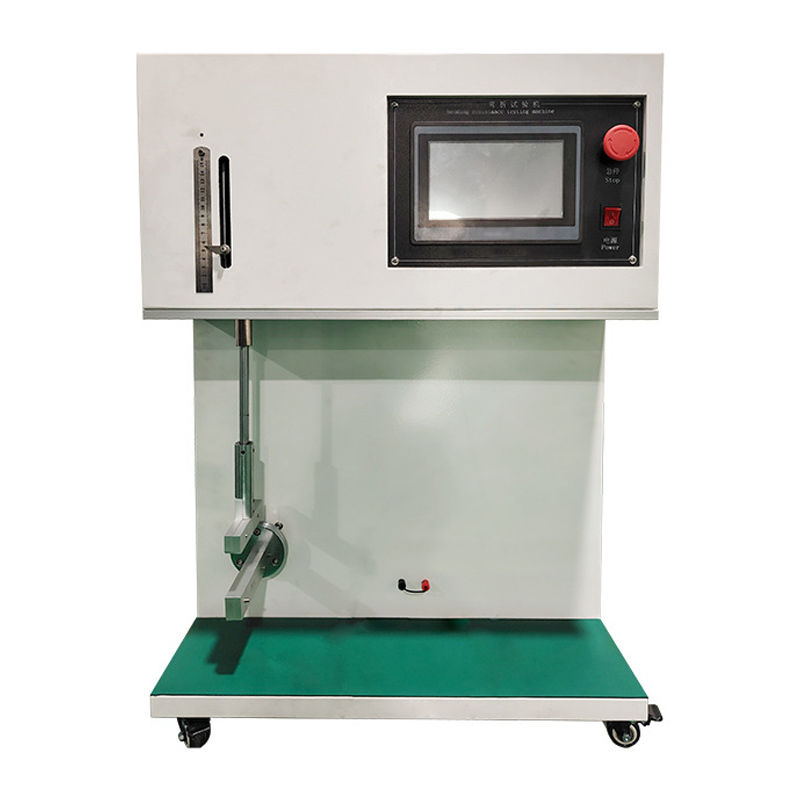

ASTM-D2176 FPC Bending Test Machine by Touchscreen Control

Large Image : ASTM-D2176 FPC Bending Test Machine by Touchscreen Control

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q005

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

ASTM-D2176 FPC Bending Test Machine by Touchscreen Control

Description

Test Specimen:	One Group / One Trial	Control Method:	Touch Screen Control, Single-sided Or Double-sided Testing Is Possible
Fixture Spacing:	40 - 100mm (customizable)	Testing Stroke:	45 - 100mm
Bending R-angle Radius:	R0.38, R0.8, R1.2, R2.0 Interchangeable	Bending Speed:	10 - 200 Times/min
Automatic Counter:	0 - 999,999 Can Be Set

LR-Q005 ASTM-D2176 Standard Model FPC Bending Test Machine by Touchscreen Control

1. Product Description

The flexible screen bending life testing machine is mainly used for bending life tests on flexible boards that can be bent (commonly known as flexible circuit boards, flexible OLED screens and flexible materials).

2. Standards

The flexible circuit board fatigue resistance testing machine is manufactured in accordance with the testing standards such as JIS C6471, JIS C5016, APPI-T423PM, ASTM-D2176, JIS-P8115, and BG/T2679.5.

3. Specification

Test specimen	One group / one trial
Bending angle	0 - 180 degrees, digitally set with any angle adjustable (180 degrees can be customized)
Control method	Touch screen control, single-sided or double-sided testing is possible
Fixture spacing	40 - 100mm (customizable)
Testing stroke	45 - 100mm
Bending R-angle radius	R0.38, R0.8, R1.2, R2.0 interchangeable
Bending speed	10 - 200 times/min
Automatic counter	0 - 999,999 can be set
Transmission method	Servo motor
Operating method	Touch screen
Control method	PLC program
Test fixture	Fixture matching R-angle, the fixture can directly measure FCCL samples and 0.05mm insulating film samples
Bending load	500g * 3 (customizable)
Power supply	220V 50/60Hz
