High ow Temperature FPC Flexure Testing Equipment with Programmable Test Angle Lab Test Machine

Large Image : High ow Temperature FPC Flexure Testing Equipment with Programmable Test Angle Lab Test Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-Q004

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

High ow Temperature FPC Flexure Testing Equipment with Programmable Test Angle Lab Test Machine

Description

Test Station:	1 Station	Test Product Size:	200*250mm
Test Angle:	Programmable From 0 To 180°	Bend Radius:	R1 - R20 Can Be Adjusted Manually
Operating Mode:	7-inch Color Touch Screen	Control Mode:	PLC Software
Counting:	PLC Set From 0 To 99999999 Times
Highlight:	FPC flexure testing equipment , programmable test angle lab machine , high temperature lab test machine

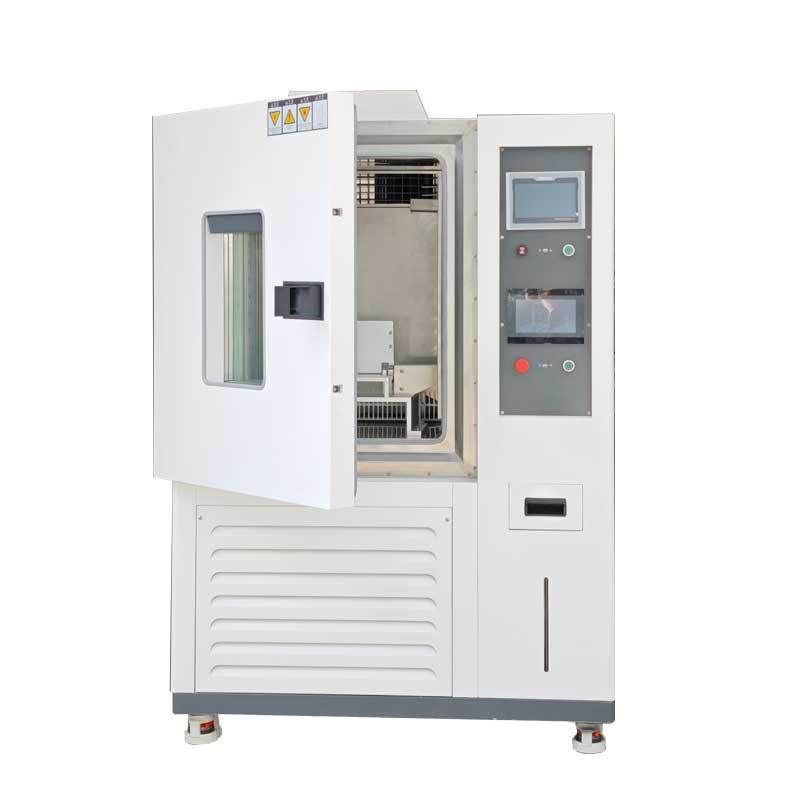

LR-Q004 High and Low Temperature FPC Flexure Testing Equipment

1. Product Description

The main design of this machine is aimed at conducting repeated bending tests on FPC wiring. It performs back-and-forth bending tests at a certain speed, stroke, (angle), and with a certain count.The main design of this machine is composed of AC servo motors, imported linear sliders, PLC programs, touch screens, steel materials, and other components. It is a professional testing equipment specifically for FPC products. The operation is simple and easy to understand, and it is a highly stable device.

2. Specification

Test station	1 station
Test product size	200*250mm
Test angle	Programmable from 0 to 180°
Bend radius	R1 - R20 can be adjusted manually
Operating mode	7-inch color touch screen
Control mode	PLC software
Counting	PLC set from 0 to 99999999 times
Speed	Adjustable from 10 to 60 times/minute
Transmission	Using AC servo motor
Fixture	Designed according to the sample
Power supply	220V 50HZ

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
