FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen

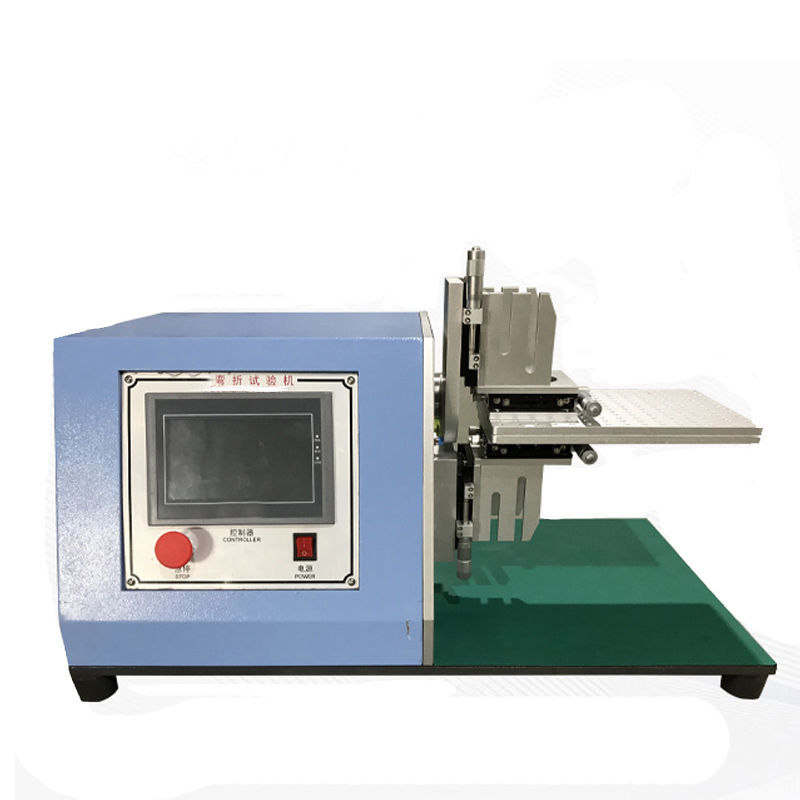

Large Image : FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LR-Q002

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiate
Packaging Details:	Wooden package
Delivery Time:	5-8 Workdays
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200 PCS

Contact Now

FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus with Touch Screen

Description

Test Station:	1 Station	Test Product Size:	0 - 15 Inches
Test Angle:	0 - 180° Programmable	Bend Radius:	R1 - R20 Manually Adjustable
Test Cycle Range:	0 - 99999999 Times Set By PLC

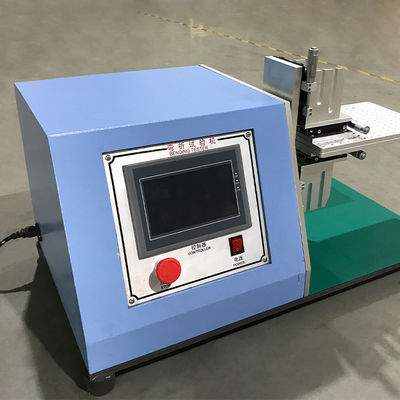

LR-Q002 Touch Screen FPC Bending Testing Machine Flexible Tester Tensile Test Apparatus

1. Product Description

The main design of this machine is to conduct repeated bending tests on FPC wiring, with certain speed, stroke, (angle), and count conditions for back-and-forth bending tests.The main design of this machine is composed of AC servo motor, imported linear slider, PLC program, touch screen, steel, etc. It is a professional testing equipment specifically for FPC products. It is simple and easy to operate, and has extremely high stability.

2. Specification

Test station	1 station
Test product size	0 - 15 inches
Test angle	0 - 180° programmable
Bend radius	R1 - R20 manually adjustable
Test cycle range	0 - 99999999 times set by PLC
Test speed range	10 - 60 times/minute adjustable
Operating mode	7-inch color touch screen
Control mode	PLC software
Transmission	Uses AC servo motor
Fixture	Designed according to the sample
Power supply	220V 50HZ
Weight	Approximately 45kg
