High Temperature Strength Testing Instrument Foundry Sand Hot Strength Tester 2.5KW

Large Image : High Temperature Strength Testing Instrument Foundry Sand Hot Strength Tester 2.5KW

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LRQW

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

High Temperature Strength Testing Instrument Foundry Sand Hot Strength Tester 2.5KW

Description

Main Unit Dimensions:	720 × 500 × 1644 Mm	Sample Standard:	Ø30 × 50 Mm
Test Temperature:	Ambient To 1400°C	Power:	2.5KW
Load Range:	0-20,000 N	Warranty:	1 Year
Certification:	Includes Calibration Certification
Highlight:	High Temperature Strength Testing Instrument , Strength Testing Instrument 2.5KW , Foundry Sand Hot Strength Tester

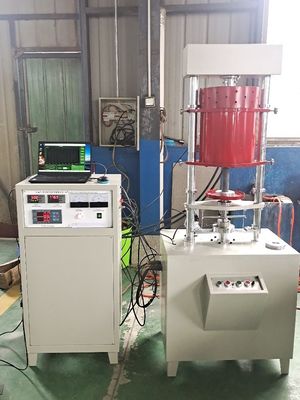

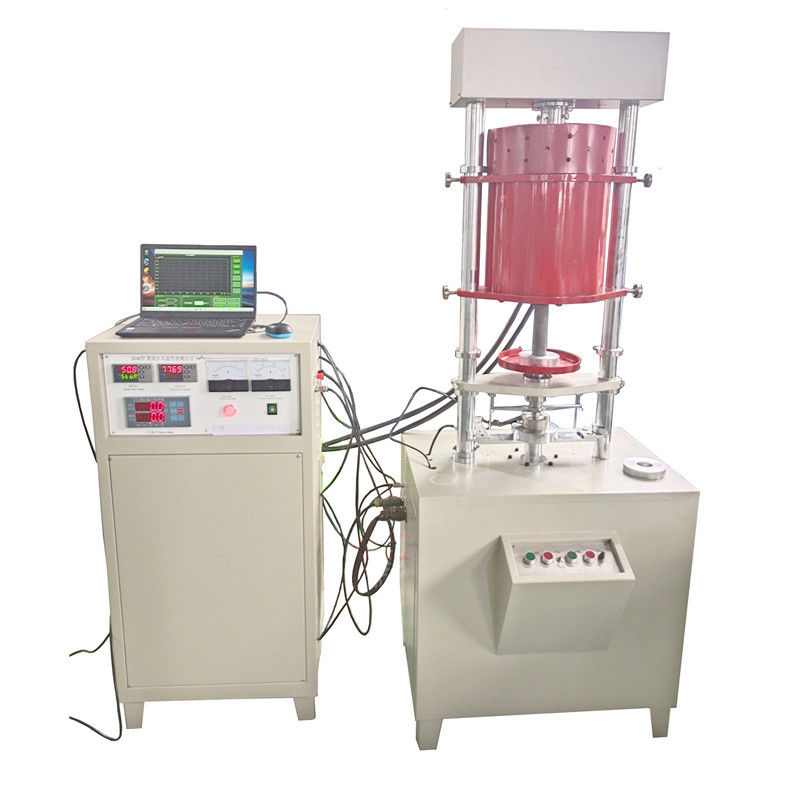

LRQW High Temperature Strength Testing Instrument Foundry Sand Hot Strength Tester

1.Description:

This instrument is mainly used for quantitative testing of stress and strain generated in non-metallic materials under high-temperature conditions. It can conduct tests such as thermal expansion, compressive strength, thermal expansion force, thermal deformation of samples under fixed load, residual strength, and compressive strength at room temperature within a temperature range of 0°C to 1400°C.
The entire process is automatically controlled and data processed by the computer.

2.Technical Parameter

Parameter Item	Specification
Load Range	0-20,000 N (0-28.29 MPa)
Deformation Measurement Range	±5 mm, Resolution: 0.01 mm
Test Temperature	Ambient to 1400°C
Sample Standard	Ø30 × 50 mm
Force Measurement Accuracy	< ±1% FS
Deformation Measurement Accuracy	< ±1% FS
Heating Rate	User-defined constant rate, multi-segment program control
SiC Tube Furnace Parameters	Chamber: Ø50 mm, Power: 2.5 kW
Loading Speed	0.8-8 mm/min, manual adjustment
Main Unit Dimensions	720 × 500 × 1644 mm (L×W×H)

Tag:

Contact Person: Ms. Lilianne Chen

Tel: 13751328225

Fax: 86-769-83078748
