High Temperature Creep Testing Machine Compressive Creep Rate Analyzer

Large Image : High Temperature Creep Testing Machine Compressive Creep Rate Analyzer

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LRHY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

High Temperature Creep Testing Machine Compressive Creep Rate Analyzer

Description

Power Supply:	380V AC, 3kW	Sample Size:	Ø50 × 50 Mm
Sample Load Pressure:	0.2MPa	Max. Heating Temperature:	1650°C
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	High Temperature Creep Testing Machine , Compressive Creep Testing Machine , Compressive Creep Rate Analyzer

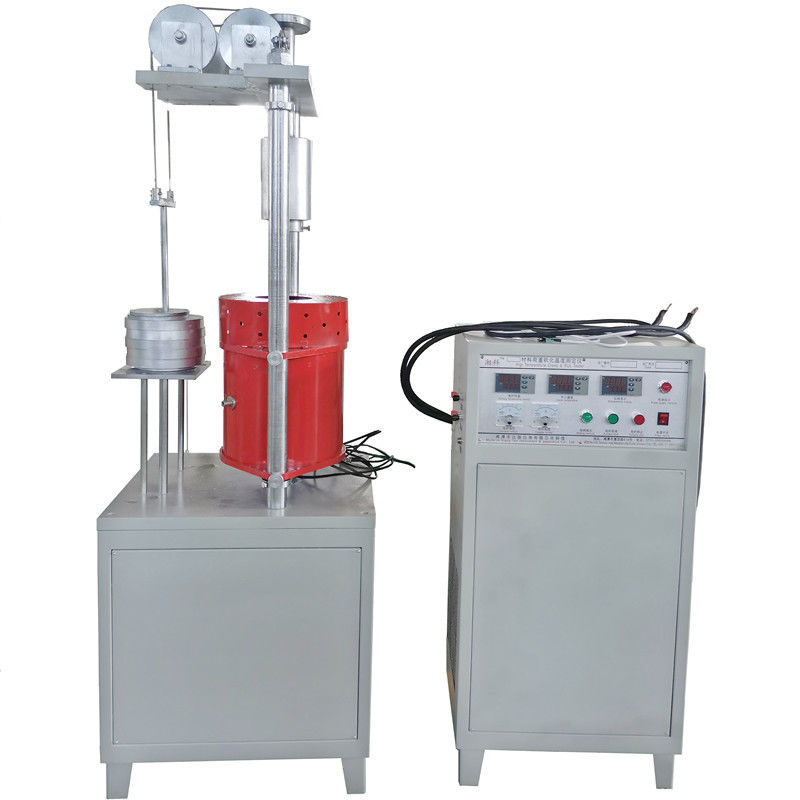

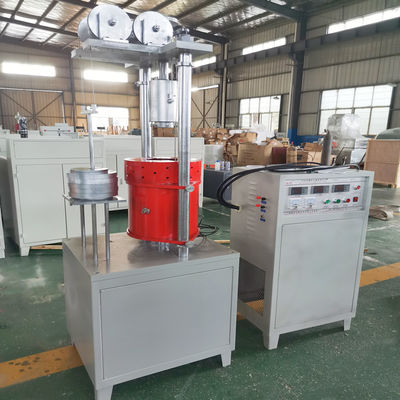

LRHY High Temperature Creep Testing Instrument Elevated Temperature Compressive Creep Rate Analyzer

1.Description:

This instrument is used to test the resistance of refractory materials to the high-temperature load softening effect, and it is an important indicator for testing the high-temperature mechanical properties of refractory materials. It complies with the national standards GB/T5073-2005 "Test Method for Creep of Refractory Materials under Pressure" and GB/T5989-2008 "Test Method for Softening Temperature of Refractory Materials under Load", and it can conduct automatic computer testing, data processing, and automatically generate temperature and deformation curve graphs for saving.

2.Technical Parameter

Parameter Item	Specification
Max. Heating Temperature	1650°C
Temperature Control	±1°C accuracy, microprocessor-programmable
Deformation Measurement Error	≤0.01mm
Sample Size	Ø50 × 50 mm
Sample Load Pressure	0.2MPa
Power Supply	380V AC, 3kW
