Ceramic Breathability Tester 220V 50Hz Gas Permeameter For Porous Ceramics

Large Image : Ceramic Breathability Tester 220V 50Hz Gas Permeameter For Porous Ceramics

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	LRTQ

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Ceramic Breathability Tester 220V 50Hz Gas Permeameter For Porous Ceramics

Description

Power Supply:	220V, 50Hz	Standard Sample Size:	Ø30 ±0.5 Mm
Pressure Gauge Accuracy:	±1%	Test Pressure:	0-5 KPa
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	Ceramic Breathability Tester , Breathability Tester 220V , 50Hz Gas Permeameter

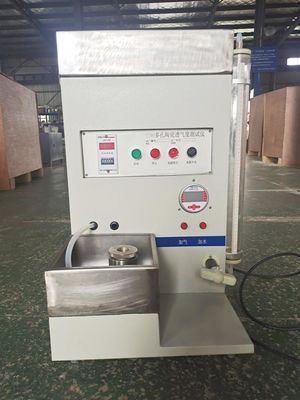

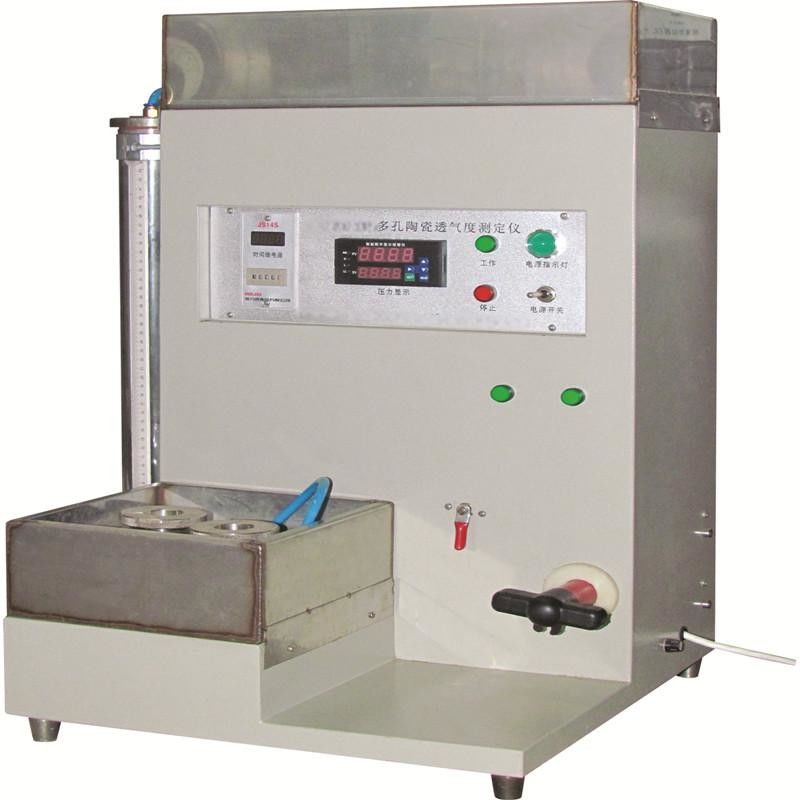

LRTQ Ceramic Breathability Device Gas Permeameter for Porous Ceramics

1.Description:

The LRTQ porous ceramic permeability tester complies with the GB1968 standard for the determination of the permeability of porous ceramic products. The permeability of porous ceramic products refers to the number of cubic meters of air that can pass through a porous ceramic product with a thickness of 1 centimeter and an area of 1 square meter, at a pressure difference of 1 millimeter of water column and in a laminar flow state, within 1 hour at room temperature.

2.Technical Parameter.

Parameter	Specification
Test Pressure	0-5 kPa (adjustable)
Pressure Gauge Accuracy	±1% (in kPa)
Standard Sample Size	Ø30 ±0.5 mm
Power Supply	220 V, 50 Hz
