Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument

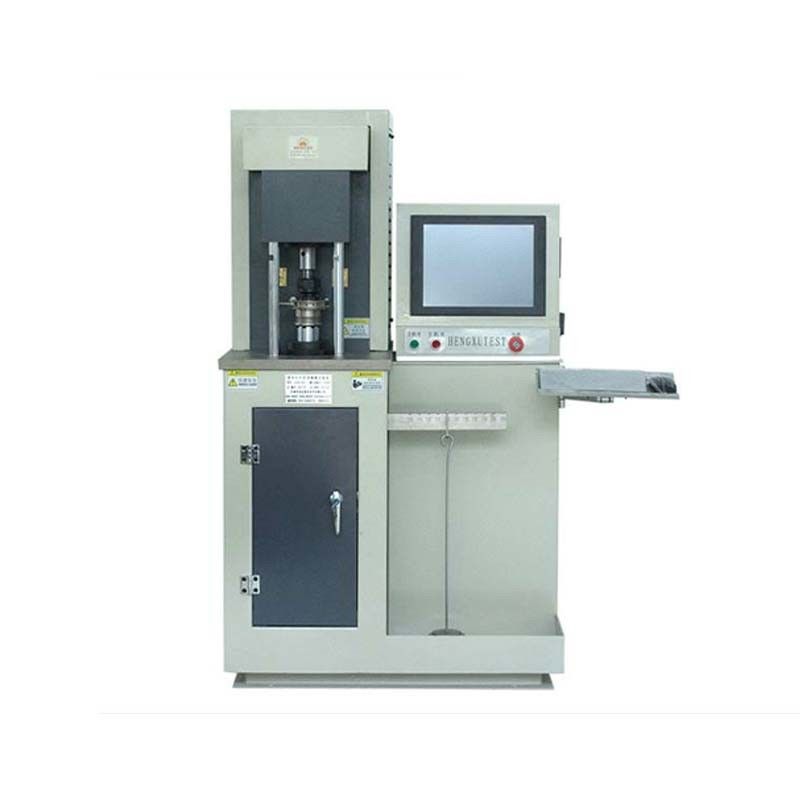

Large Image : Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ASTM ISO
Model Number:	LR-STY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Lever Four Ball Friction Testing Machine 200N Rubbing Wear Instrument

Description

Maximum Friction Force:

200N

Working Temperature Range Of The Heater:

Indoor Temperature,～250℃

Temperature Control Accuracy:

±3℃

Maximum Test Force:

10000N

Highlight:

Four Ball Friction Testing Machine

Friction Testing Machine 200N

Lever Four-ball Friction Testing Machine Rubbing Wear Instrument

Product Introduction

The Lever Four-ball Friction Testing Machine is a cost-effective laboratory evaluation equipment developed by our company to meet the needs of lubricant research and production users. This testing machine adopts the sliding friction mode and, under extremely high point contact pressure conditions, evaluates the bearing capacity of lubricants, including the maximum no-stall load PB, the sintering load PD, and the comprehensive wear value ZMZ, etc. three indicators.

Product Parameter

Test force
Maximum test force	10000N
Less than 4% of the maximum test force, indication error	±5N
More than 4% of the maximum test force, relative indication error	±1％
Test force loading method	Front-mounted weight loading
Frictional force
Maximum friction force	200N
Relative error of friction force indication should not exceed	±2%
Automatic stop of excessive friction force during heavy load operation
Working temperature range of the heater	indoor temperature,～250℃
Temperature control accuracy	±3℃
