Servo Motor Controlled Friction and Wear Testing Machine with Dry Friction Test Method and 10000N Maximum Load

Large Image : Servo Motor Controlled Friction and Wear Testing Machine with Dry Friction Test Method and 10000N Maximum Load

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-HWF

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

Servo Motor Controlled Friction and Wear Testing Machine with Dry Friction Test Method and 10000N Maximum Load

Description

Maximum Rotational Speed:	33r/min	Universal Joint Angle:	-15 To 15 Degrees
Thrust Bearing Angle:	-30 To 30 Degrees	Maximum Load:	10000N
Test Force Error:	±1%	Equipment Power:	2.5KW
Highlight:	Precision Friction And Wear Testing Machine , Compound Friction And Wear Testing Machine

Compound Precision Friction And Wear Testing Machine Complex Rubbing Wear Analyzer Lab Test Machine

Compound Friction and Wear Testing Machine Complex Rubbing Wear Analyzer

Product Introduction

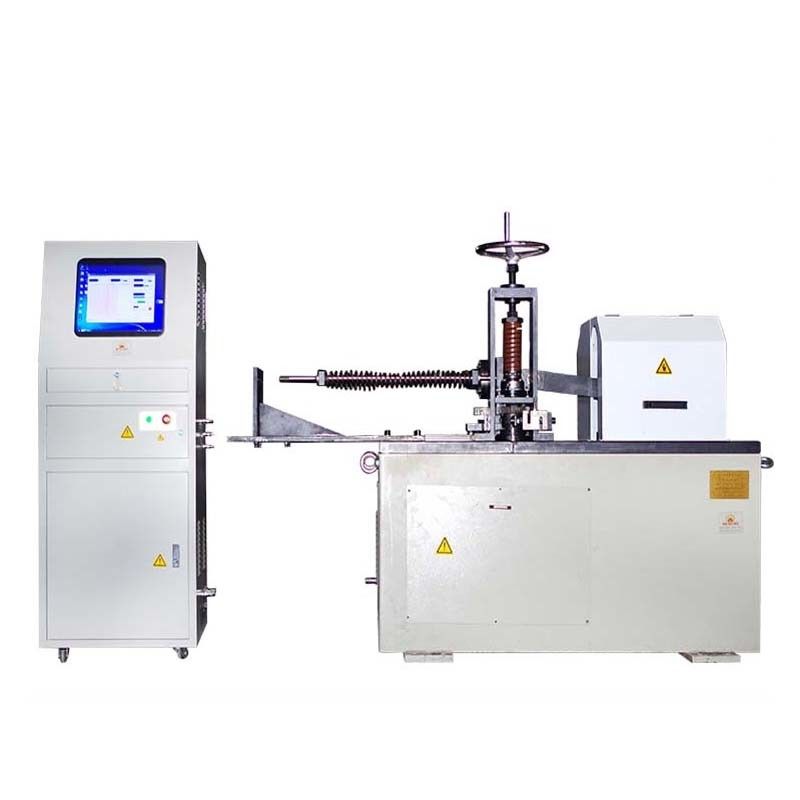

The LR-HWF composite friction and wear testing machine is a precision testing machine. It is controlled by a servo motor, operates stably and reliably, and can set parameters such as time and rotational speed. This reciprocating friction and wear testing machine is the first research-oriented testing equipment in China that can be used to study the friction performance of bearings or universal joints.

Product Parameters

Parameter	Specification
Maximum rotational speed	33r/min
Universal joint friction test reciprocating Angle	-15 degrees to 15 degrees
Reciprocating Angle of thrust bearing friction test	-30 degrees to 30 degrees
Maximum load	10000N
Loading method	Manual loading
Relative error of test force	±1%
Measurement method of friction torque	Torque conversion measurement
Test method	Dry friction
Time display mode and control	10S-9999H
Data processing	Equipped with a standard computer processing system
Test temperature	Room temperature
Equipment power	About 2.5KW

Tag:

Contact Person: Ms. Kaitlyn Wang

Tel: 19376687282

Fax: 86-769-83078748
