Multi Condition Horizontal Variable Angle Friction And Wear Testing Machine

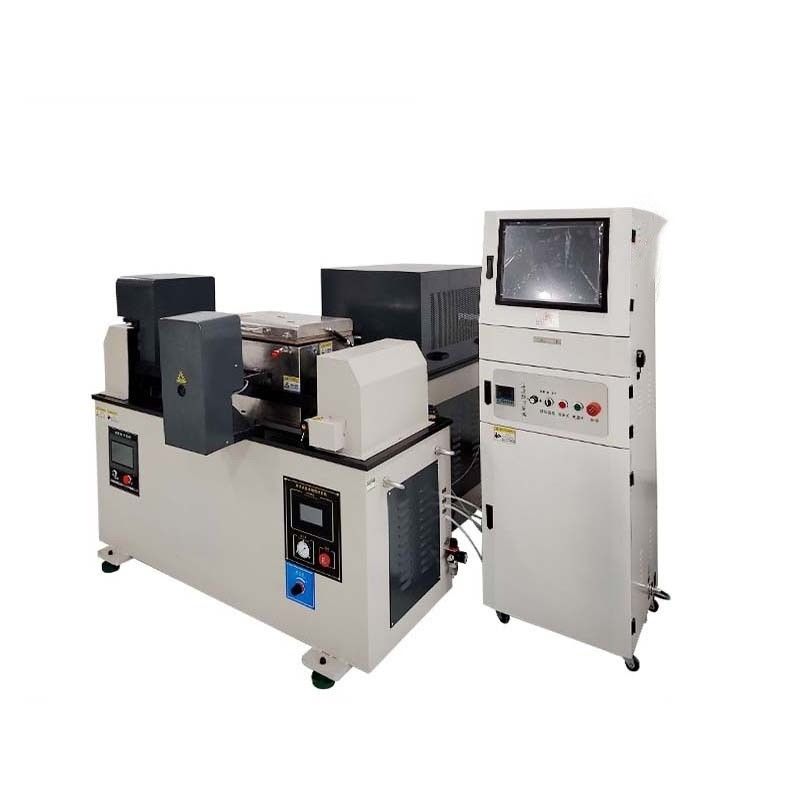

Large Image : Multi Condition Horizontal Variable Angle Friction And Wear Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ASTM ISO
Model Number:	LR-HFM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

Multi Condition Horizontal Variable Angle Friction And Wear Testing Machine

Description

Test Rotational Speed:

1-2000r/min

Swing Angle:

±15 Degrees

Loading Method:

Manual

Temperature Control Range:

- 60-600 ℃

Highlight:

Horizontal Friction And Wear Testing Machine

ODM Friction And Wear Testing Machine

Multi-condition Horizontal Variable-angle Friction and Wear Testing Equipment

Product Introduction

This structural product can achieve forward and reverse rotation, angular rotation and mixed motion. The periphery adopts a closed box, and the power is transmitted to the test ball bearing through a series of power transmission devices. Different motion modes are achieved by controlling different servo controllers. The device can conduct environmental tests such as salt spray, atmosphere, high temperature and low temperature, and can also perform multiple functional tests including high-speed, high and low pressure load, and rotary reciprocating.

Product Parameter

Test rotational speed	1-2000r/min
Swing Angle	±15 degrees
Load	20-20kN (elastic alternating loading)
Loading method	Manual
Relative error in test force measurement	Plus or minus 1%
Measurement method of friction torque	Torque conversion measurement
Online wear measurement	+ / - 0.01 mm
Temperature control range	- 60-600 ℃
Test atmosphere	Salt spray, damp heat, and alternating high and low temperatures
Data processing	One set of industrial computer and dedicated processing system
