ZCY Ceramic Tile Surface Quality Inspection Instrument Ceramic Tile Flatness Comprehensive Tester Ceramic

Large Image : ZCY Ceramic Tile Surface Quality Inspection Instrument Ceramic Tile Flatness Comprehensive Tester Ceramic

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	ZCY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

ZCY Ceramic Tile Surface Quality Inspection Instrument Ceramic Tile Flatness Comprehensive Tester Ceramic

Description

Measurement Accuracy:	±0.1 Mm	Optional Accessories:	Calibration Plate/Digital Display
Measurement Range:	60×60 ~ 1000×1000 Mm	Warranty:	1 Year
Certification:	Includes Calibration Certification
Highlight:	ceramic tile flatness tester , ceramic tile surface inspection instrument , ceramic tile quality tester with warranty

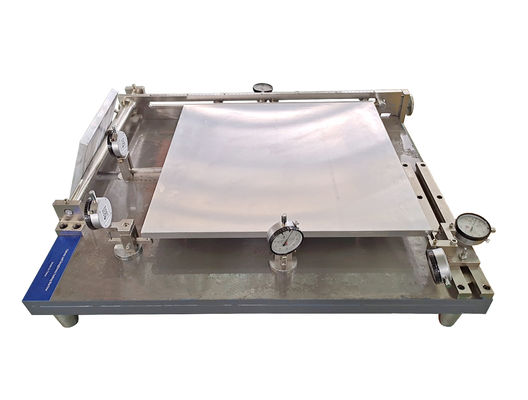

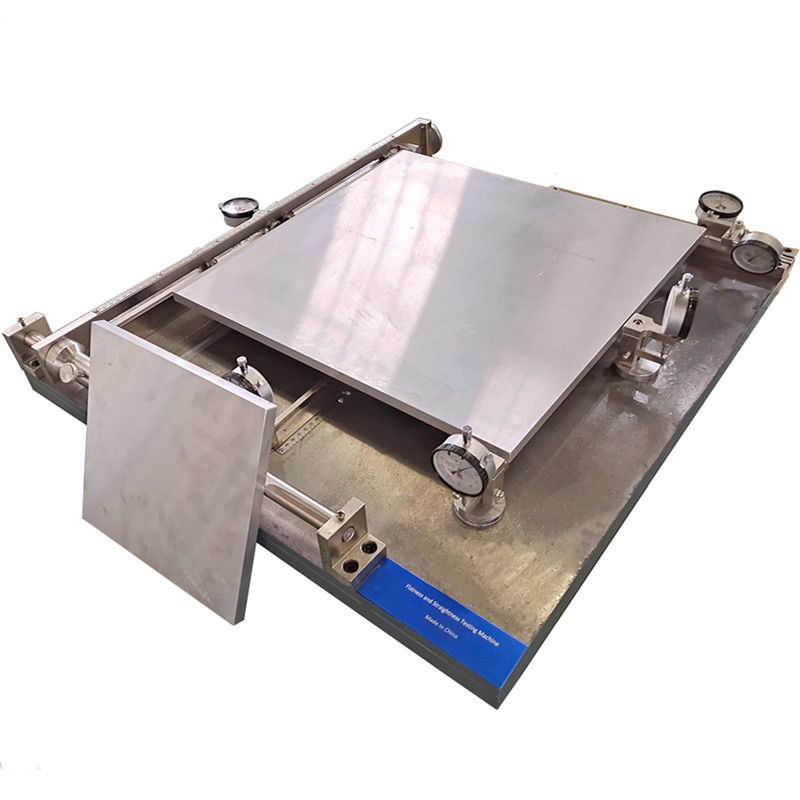

ZCY Ceramic Tile Surface Quality Inspection Instrument Ceramic Tile Flatness Comprehensive Tester

1.Description:

This instrument is suitable for measuring the size and shape characteristics of various wall tiles and floor tiles. The parameters it measures include the straightness of the edges, the angle of straightness, and the flatness (central curvature, edge curvature, warpage) of the tiles. This product complies with the requirements of: GB/T 3810.2-2016, idt ISO 10545-2-1995 "Ceramic Tiles - Inspection of Dimensions and Surface Quality".

2.Technical Parameter

Parameter	Specification
Measurement Accuracy	±0.1 mm
Measurement Range	• 60×60 ~ 600×600 mm • 60×60 ~ 800×800 mm • 60×60 ~ 1000×1000 mm (User-selectable) Custom dimensions available upon request
Optional Accessories	• Calibration plate • Digital display (Both customizable per user requirements)
