RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine

RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine
RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine

Large Image :  RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: RSQ 05
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200
Contact Now

RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine

Description
Basket Size: 300×300×300/600×300×600 Mm Max. Operating Temperature: 300°C
Timer Range: 0~120 Min Temp. Rise In Water: 22.5 Mm
Temp. Control Accuracy: ±5°C Warranty: 1 Year
Certification: Includes Calibration Certification
Highlight:

ceramic thermal stability tester

,

ceramic shock resistance testing machine

RSQ 05 Daily Use Ceramic Thermal Stability Tester Ceramic Thermal Shock Resistance Testing Machine

1.Description:

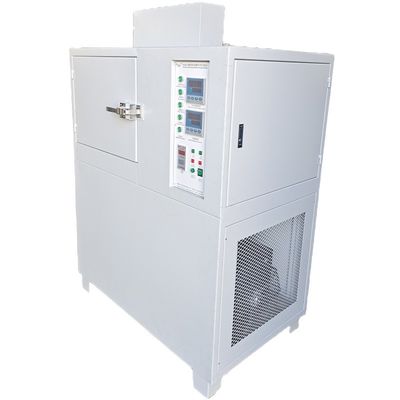

This instrument is a specialized device for measuring the thermal shock resistance of ceramic tiles. It complies with the requirements of GB/3810.9-2016 and ISO10545-9:2013 for the determination of thermal shock resistance of ceramic tiles, as well as GB/T3298-2008 for the determination of thermal shock resistance of daily-use ceramic products. When the water absorption rate of the ceramic tiles is less than 10%, the immersion test method is adopted. This instrument is also applicable for the thermal shock resistance and thermal stability tests of glass and other silicate products, as well as refractory materials. It is equipped with an electric lifting and lowering device.

2.Technical Parameter

Parameter Specification
Max. Operating Temperature 300°C
Uniform Zone & Temperature Deviation Option 1: 300×300×300 mm, ±5°C
Option 2: 600×300×600 mm, ±5°C (Selectable)
Temp. Control Accuracy ±5°C (at 300°C)
Effective Capacity
(Basket Size)		 Option 1: 300×300×300 mm
Option 2: 600×300×600 mm (Selectable)
Cold Oven Heating Time 60 min (Room temp → 300°C)
Temperature Recovery Time
(7kg cold material)		 5 min (to 300°C)
Water Tank Temp. Range 15-50°C
Water Temp. Control Accuracy ±2°C
Water Temp. Uniformity ±2°C
Temp. Rise in Water
(7kg hot material)		 ≤4°C (within 5 min, material at 300°C)
Max. Power Consumption • Furnace: 6 kW
• Water Heater: 4 kW
• Compressor: 2.2 kW
Timer Range 0~120 min
