CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine

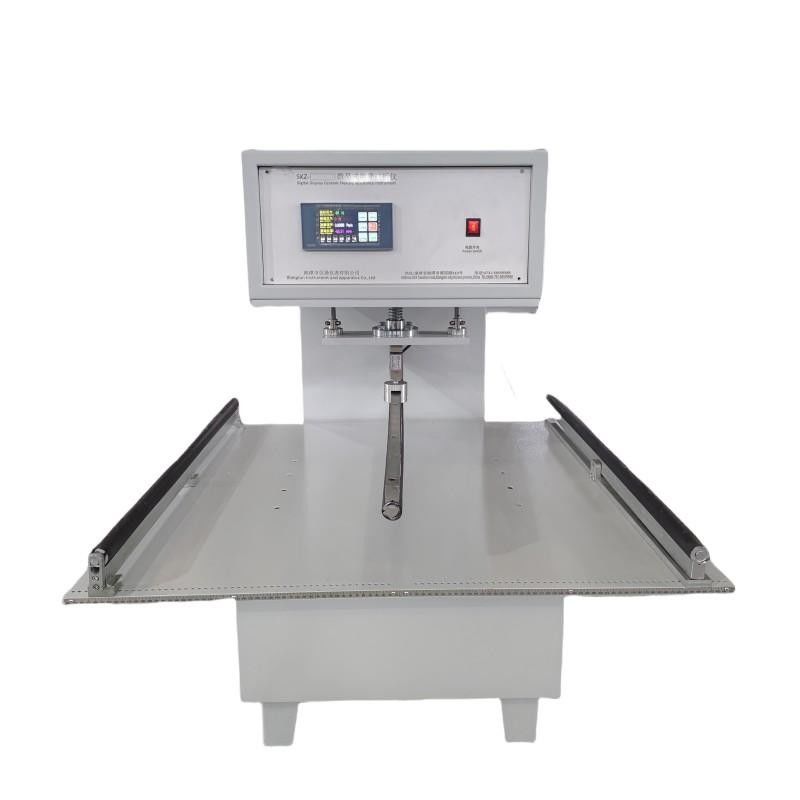

Large Image : CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	CKZ-10000

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine

Description

Power Supply:	220 V, 0.2 KW	Loading Rate:	1-700 N/s
Maximum Load:	10000 N	Accuracy:	0.5%
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	ceramic impact tester , tile bending testing machine , intelligent impact tester

CKZ-10000 ISO 10545 Intelligent Ceramic Impact Tester Ceramic Tile Bending Testing Machine

1.Description:

This instrument adopts a deceleration motor speed control loading mechanism and a touch screen microcomputer for control, calculation and display. It complies with GB/T 3810.4-2016 / ISO 10545-4:2014 "Test methods for ceramic tiles - Determination of flexural modulus and breaking strength", and is also applicable for measuring the flexural strength and compressive strength of engineering ceramics, electrical ceramics, daily-use ceramics, ceramic pipes, and brick and tile products. By changing the fixture, it can also be used to measure parameters such as tear resistance.

2.Technical Parameter

Parameter	Specification
Maximum Load	10000 N
Loading Rate	1-700 N/s (Digital Adjustable Display)
Sample Size Range	Option 1: 60×60 mm - 600×600 mm Option 2: 60×60 mm - 800×800 mm Option 3: 60×60 mm - 1000×1000 mm 1200×1200 mm available upon customization
Data Processing	Computerized, Accuracy: 0.5%
Touchscreen Interface	Real-time pressure display, Peak pressure display, Loading speed display, Sample size input, Parameter settings, Calibration interface
Automatic Calculation	Breaking Strength (S), Modulus of Rupture (R)
Power Supply	220 V, 0.2 kW
