PEM Density Meter Non Metallic Material Densitometer

Large Image : PEM Density Meter Non Metallic Material Densitometer

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	CE ISO ASTM
Model Number:	PEM

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	200

Contact Now

PEM Density Meter Non Metallic Material Densitometer

Description

Preload:	1.961 N	Main Load Weights:	10.58 N, 13.72 N
Indenter Size:	0.6 Mm, 0.7 Mm, 0.9 Mm	Measuring Range:	0.01 ~ 3 Mm
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	PEM Density Meter , Non Metallic Material Densitometer

PEM Density Meter Non-Metallic Material Densitometer

1.Description:

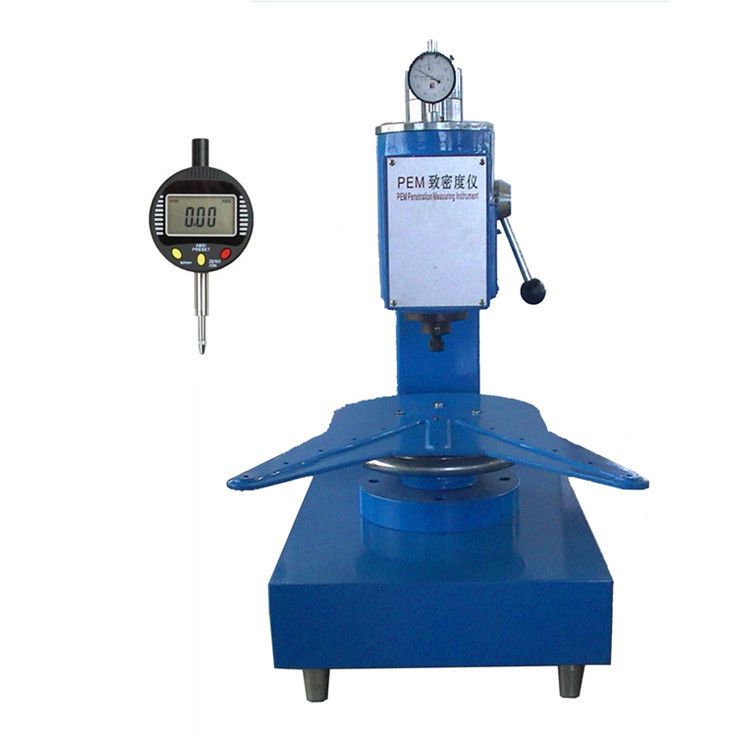

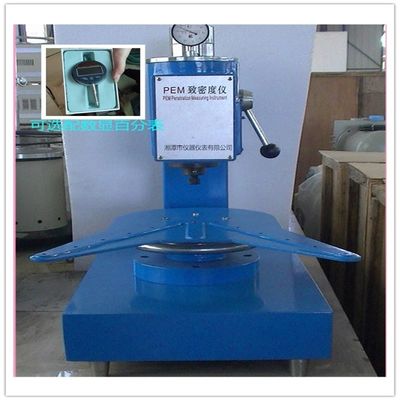

The PEM type non-metallic material density meter is a dedicated instrument for measuring the density of non-metallic powder formed bodies such as ceramic tiles. The PEM type density meter consists of a body, a loading and unloading load mechanism, a press head, a sample support worktable and its lifting mechanism, a depth measurement device for indentation, and other components. The press head includes various specifications of needle-shaped press heads, all made of stainless steel.

2.Technical Parameter

Parameter	Value / Specification
Preload	1.961 N
Main Load Weights	10.58 N, 13.72 N
Indenter Size	0.6 mm, 0.7 mm, 0.9 mm (Selectable)
Measuring Range	0.01 ~ 3 mm (Indentation Depth)
