Atmosphere Plasma Surface Cleaning Machine for Coating
1. The Profile

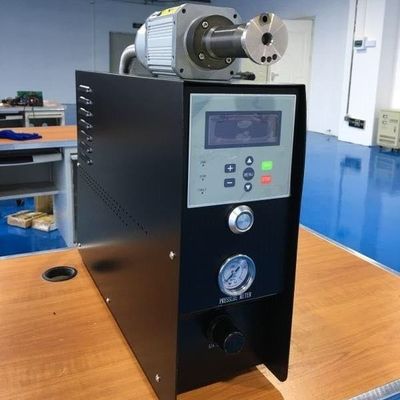

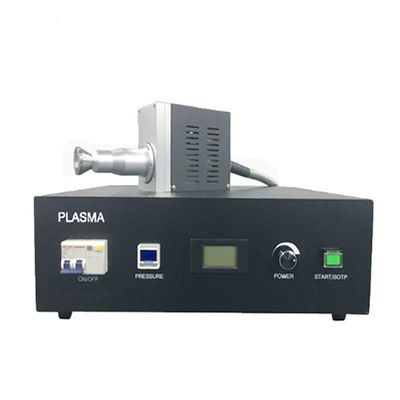

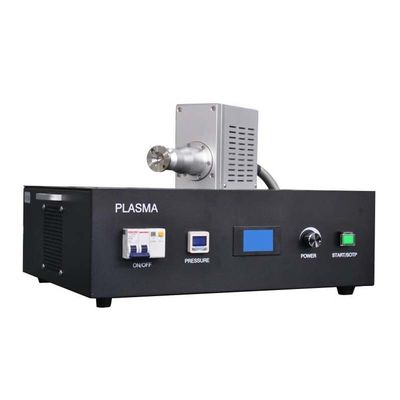

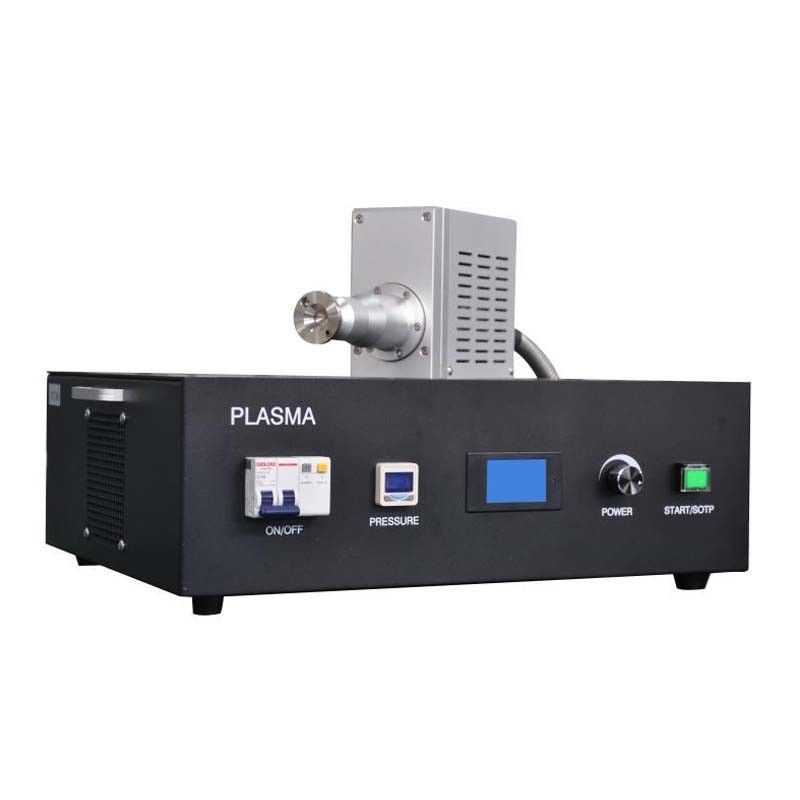

SPA-2800 Atmosphere Plasma Cleaning Machine(Plasma cleaner),is a surface cleaning, activation, etch products in the atmospheric environment, usually with a high-speed rotary gun head spray gun, mainly deal with large areas, more complex shape of the material, is the industry paste is not strong, welding is not strong, printing is not easy to point off the problem of the "enemy".Plasma cleaning as a product surface printing, packaging, fitting, coating, welding, viscose, coating process, is an important part of product upgrading, capacity expansion, cost reduction.
2. Product features
1. Compact machine, wide application range, professional, efficient, accurate, lasting, environmental protection, and flexible configuration, cost-effective
2. Can be combined with the production line, can be continuous operation, improve the production speed;
3. Low gas cost(CDA/N2),cost saving;
4. Advanced in the industry Full-bridge inverter circuit;
5. Patented high voltage generator design;
6. Patented gun head design, no ESD generation;
7. Unique patent discharge technology, high plasma concentration;
3. Industrial application
1. 3C industry: phone assembly bonding, camera module, earphone bonding, phone back cover baking paint, phone cover activation
2. Display industry: TP fit
3. Automotive industry bonding: headlights, steering wheel, EPDM seal, windshield, automotive electronics, automotive accessories
4. Connector industry: cable character printing
5. Household appliances: dispensing, screen printing, jet code
6. New energy: lithium battery, jet code, assembly bonding
7. Clock industry: bonding, inlaying, bonding
8. Plastic industry: surface activation, bonding, screen printing
9. Metal industry: gold plating, silver plating, welding, removal of residual organic matter
10.Glass industry:coating film, ink printing, coating, paste
4. Equipment Specifications
| Plasma power main machine specification |
| Case size |
560*452*186mm(L*W*H) |
| Weight |
20KG |
| Input Power |
Single-phase 220 v, 50/60 hz, ground wire resistance < 0.5 Ω |
| Mains frequency |
20-50KHz |
| Plasma output |
500-700w adjustable, high power version 700-900w |
| Control mode |
I/O port |
| Alarm |
Overload protection, short circuit protection, circuit break protection, temperature protection |
Plasma power gun head specification
|
| Spear head size |
As shown in the following equipment drawing |
| Gun nozzle specifications |
Optional ordinary 20mm, 30mm, 50mm (standard), 70mm nozzle
And 20mm, 30mm, 50mm, 70mm muzzle
|
| Spear head weight |
8KG |
Plasma cleaning height
|
5-20mm |
Effective plasma width
|
20-80mm |
| High tension line long |
3.5 m( 6 m We can customize the) |
5. General Requirements
Factory specifications
|
| Ac power specification |
Power supply: single-phase AC220V, 50/60hz, 3-wire, 10A
|
Factory exhaust
|
Flow: 2.0 m /min ;
Pressure: -280~-350 Pa;
Diameter: 4 ";
Material: stainless steel;
Exhaust hood: according to the design of the site environment to connect the factory pumping system
|
Factory compressed air requirements
|
Traffic: 35 LPM;
Pressure: 3~7 kg/cm;
Pipe diameter: 8×5 mm ;
Material: PU pipe;
Dew point: below -40ºC;
Particle > 0.3 m: 10Pcs/ft;
|
| Service clearance |
More than 60 cm |
Remark
1. Do not change consumables without training.
2. Please turn off the power for more than 20 minutes before replacing consumables, and make high voltage protection
| Configuration list |
| Name |
quantity |
| Plasma generator |
1 platform |
Plasma head
|
1 individual |
| High tension connection |
1 root (standard 3.5 m) |
| Product specification |
1 this |
1. Drawings of the size of the power supply main machine
2. Size drawing of high-pressure ion generator of gun head
