LR-SPY Ceramic Tile Wet Expansion Tester 220V 5kW Wet Expansion Machine

Large Image : LR-SPY Ceramic Tile Wet Expansion Tester 220V 5kW Wet Expansion Machine

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Certification:	ISO ASTM CE
Model Number:	LR-SPY

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotaible
Packaging Details:	Wooden package
Delivery Time:	5-8 work days
Payment Terms:	L/C,D/A,D/P,T/T,Western Union
Supply Ability:	200

Contact Now

LR-SPY Ceramic Tile Wet Expansion Tester 220V 5kW Wet Expansion Machine

Description

Power Supply:	220V, 5kW	Sample Size:	100 × 50 Mm (L × W)
Sensitivity:	≤1 μm	Deformation Range:	±5mm
Warranty:	1 Year	Certification:	Includes Calibration Certification
Highlight:	Ceramic Tile Wet Expansion Tester , Wet Expansion Tester 220V , 5kW Wet Expansion Machine

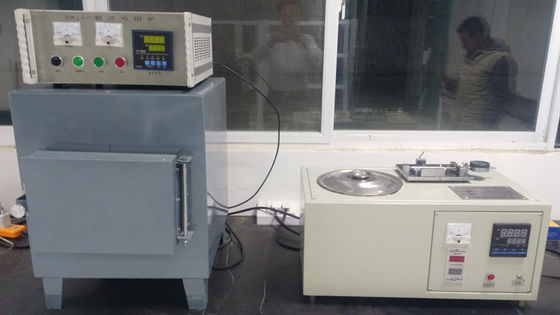

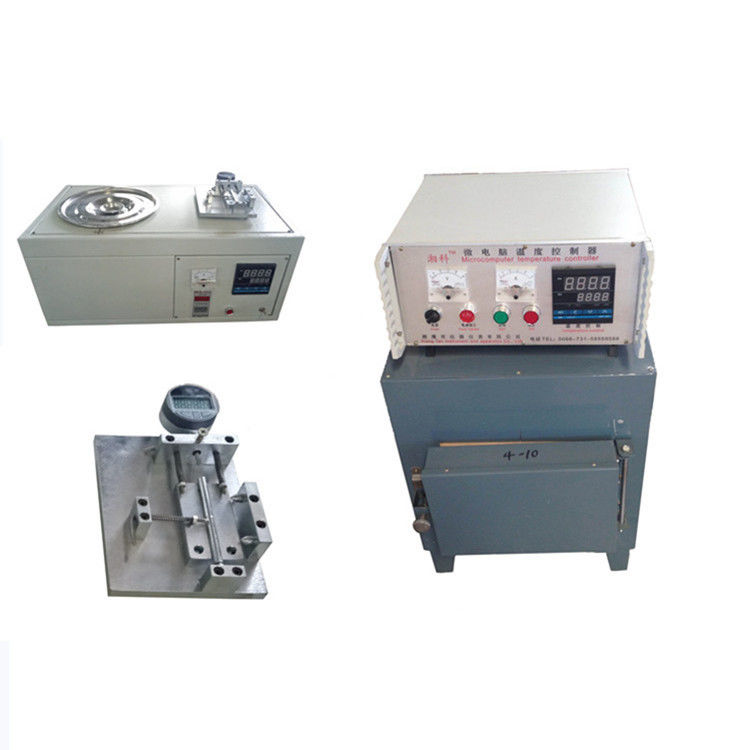

LR-SPY Ceramic Tile Wet Expansion Meter Wet Expansion Machine

1.Description:

This instrument meets the requirements for testing equipment specified in GB/T 3810.10-2016 and ISO 10545.10-1995 "Test Methods for Ceramic Tiles - Part 10: Determination of Wet Expansion", and is suitable for the measurement of wet expansion of ceramic tiles.

2.Technical Parameter.

Parameter	Specification
Max. Working Temp.	800°C
Deformation Range	±5mm
Sensitivity	≤1 μm
Temp. Control Accuracy	±5°C
Sample Size	100 × 50 mm (L × W)
Power Supply	220V, 5kW
