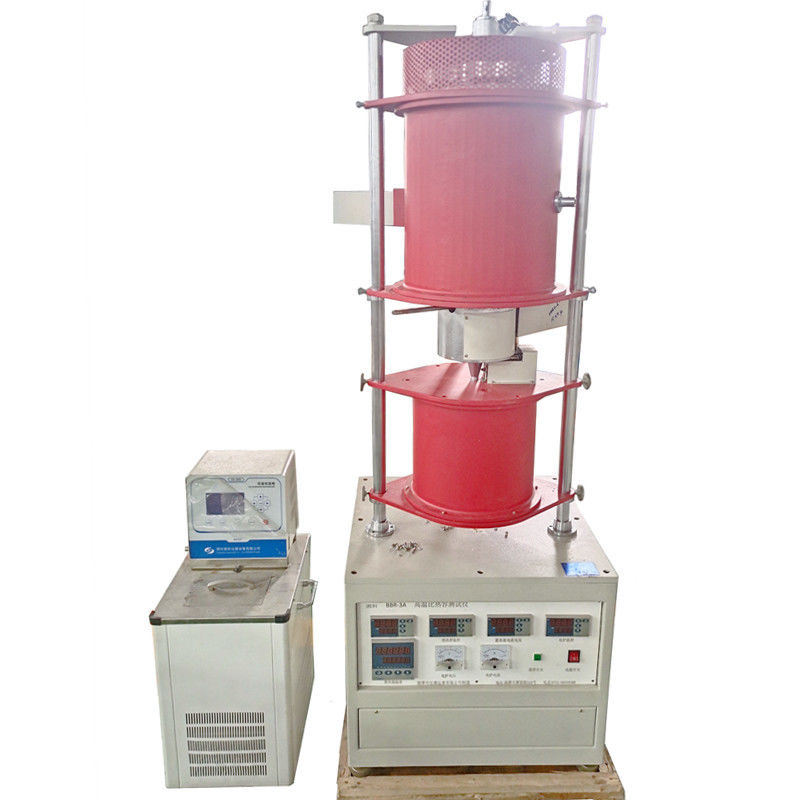

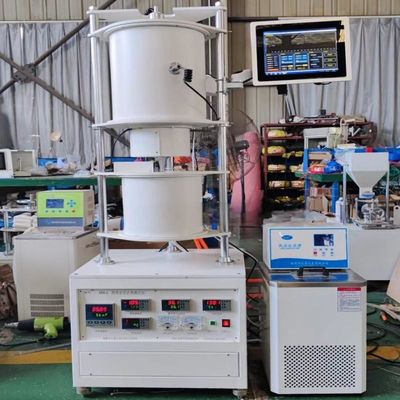

LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument

I'm Online Chat Now

LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument

LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument
LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument

Large Image :  LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument

Product Details:
Place of Origin: China
Brand Name: Lonroy
Certification: CE ISO ASTM
Model Number: LRR-3A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotaible
Packaging Details: wooden package
Delivery Time: 5-8 work days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 200

LRR-3A Automatic High Temperature Heat Capacity Measurement Instrument

Description
Sample Dimensions: (Ø10 - Ø14) Mm × (20 - 40) Mm Heat Capacity: ~1500 J/K
Heat Capacity Range: 0.05 - 5 KJ/(kg·K) Power Supply: 220V/50Hz, <6 KW/380V/50Hz, <8 KW
Warranty: 1 Year Certification: Includes Calibration Certification
Highlight:

high temperature heat capacity measurement instrument

,

automatic heat capacity analyzer

,

automatic heat capacity measurement instrument

LRR-3A Automatic High-Temperature Heat Capacity Measurement Instrument

1.Description:

This instrument is designed and manufactured in accordance with GJB 330A-2000 (Test Method for Specific Heat Capacity of Solid Materials - 60-2773K). It uses the copper card method combined with the mixing method (referred to as the mixing method) to test the specific heat capacity of solid materials (including powdery, fiLRous and other difficult-to-form materials) at high temperatures. It is widely used in manufacturing enterprises, quality inspection departments, universities and research institutes and other scientific research units.
All the measurements and controls of this instrument are carried out through computer control, which reduces human errors and improves the test accuracy. The instrument is fully automated through computer interface operation, including data acquisition and processing, display and printing output

2.Technical Parameter.

Parameter Specification
Measurement Temperature Range Option 1: 100 - 1300°C
Option 2: 400 - 1550°C (selectable configuration)
Specific Heat Capacity Range 0.05 - 5 kJ/(kg·K)
Accuracy: ≤1% ±0.002
Sample Dimensions (Ø10 - Ø14) mm × (20 - 40) mm
Temperature Resolution 0.001°C (Range: 100 - 600.000°C)
Calorimeter Heat Capacity: ~1500 J/K
Temperature Resolution: 0.001°C
Adiabatic Screens 8-pair thermopile system
Temperature Resolution: 0.00125°C (0.01°C/8)
Oxidation Protection Argon atmosphere
Constant Temperature Bath Temperature Range: -5.00 to 60.00°C
Control System Fully automated computer-controlled testing
Power Supply For 100-1300°C: 220V/50Hz, <6 kW
For 400-1550°C: 380V/50Hz, <8 kW
