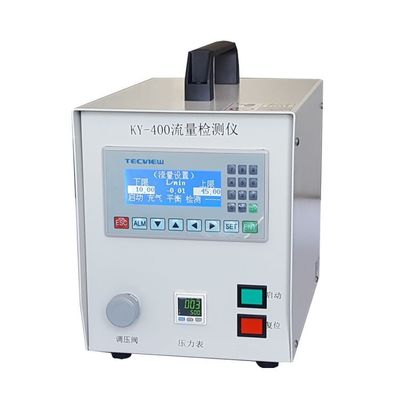

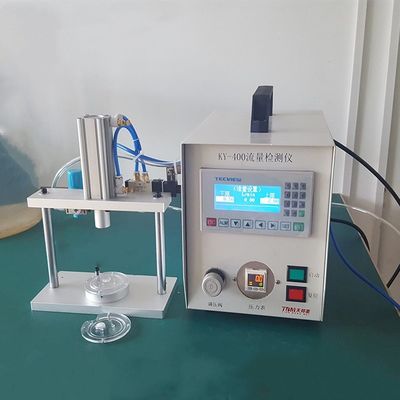

Direct Pressure Air Flow Detector 1 - 700Kpa With Highly Sensitive Flow Sensor

Large Image : Direct Pressure Air Flow Detector 1 - 700Kpa With Highly Sensitive Flow Sensor

Product Details:

Place of Origin:	China
Brand Name:	Lonroy
Model Number:	KY-400

Payment & Shipping Terms:

Minimum Order Quantity:	1
Price:	Negotiable
Packaging Details:	wooden package
Delivery Time:	5-8 work days
Supply Ability:	200 pieces

Contact Now

Direct Pressure Air Flow Detector 1 - 700Kpa With Highly Sensitive Flow Sensor

Description

Weight:

10KG

Size:

D430*W230*H340(mm)

Power:

AC 220V±10%,50/60HZ,50VA

Testing Pressure Range:

1~700Kpa

Highlight:

Air Flow Detector 700Kpa

Direct Air Flow Detector

Air Flow Detector with Highly Sensitive Flow Sensor

1. Use
KY-400 flow detector inputs compressed air with precise pressure control into the test product. The current flow value of the tested product is detected by a highly sensitive gas flow sensor, and then the upper and lower limits are compared to determine whether the test result is qualified.

2. Functional Features

1. Direct pressure and flow

2. 1 set of channel parameters, simple parameter setting

3. 7-inch display screen, Chinese and English operation interface

4. Save 1 set of test results

5. Output, OK,NG, test count function

6. IO contacts can be connected with external control elements to form an automated detection device

7. Sound and light dual alarm function

3. Application fields
This product is mainly used for air conditioning capillaries, water heater valve fittings, automobile exhaust pipes, electromagnetic valves, air filters and other products that have restrictions on gas pressure and flow.

4. Technical Specification

Model	KY-400-10L	KY-400-25L	KY-400-50L	KY-400-100L
Testing pressure range	1~700Kpa	1~700Kpa	1~700Kpa	1~700Kpa
Flow sensor	Range:0.2-10L	Range:0.5-25L	Range:1-50L	Range:2-100L
Flow sensor	Accuracy:±1.5%	Accuracy:±1.5%	Accuracy:±1.5%	Accuracy:±1.5%
Channel number	1 set of product setting parameters to save
IO Interface	3 input singals/5output singals
Time	Start - fill - balance - check - exhaust Set range:0.1s-999s
Display	3.7 inch display
Size	D430W230H340(mm)
Weight	About 10KG
Power	AC 220V±10%,50/60HZ,50VA
Test pressure source	Use a high flow, high-pressure clean air source, connected with the fine pressure valve after the stable air pressure source.
Ambient temperature and humidity	Use of temperature:5~40℃,storage temperature -20℃~70℃,below 80%RH,But no condensation
